PUSH TIE MOUNT

● Material: UL94V-2 flame rated, UL approved Nylon 66. ● Color：Natural, available in other colors. ● Drill hole on board to fix tie mount and then insert tie into the mount for bundling cables.

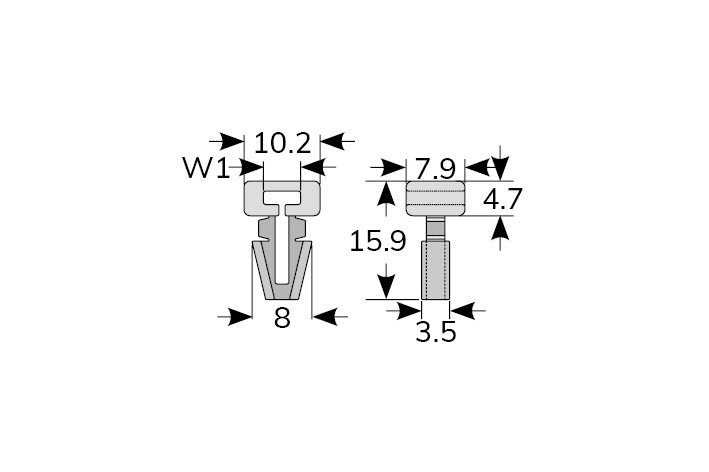

Part No.	W1	Mounting Hole	Chassis Thickness	Packing
PHC-4	3.8	4.8	0.5 ~ 1.6	100 pcs / Bag

Part No.	W1	Mounting Hole	Chassis Thickness	Packing
PHC-5	5.0	7.0	1.6 ~ 4.0	100 pcs / Bag
PHC-5L	5.0	7.0	1.6 ~ 4.0

Part No.	W1	Mounting Hole	Chassis Thickness	Packing
PHC-5A	5.0	6.3	3.2	100 pcs / Bag

Part No.	W1	Mounting Hole	Chassis Thickness	Packing
PHC-6.5	6.5	AS Figure	3.2	100 pcs / Bag

Part No.	W1	Mounting Hole	Chassis Thickness	Packing
PHC-8	8.1	6.2	0.5 ~ 1.2	100 pcs / Bag

Part No.	W1	Mounting Hole	Chassis Thickness	Packing
PHC-9	9.4	AS Figure	2.0	100 pcs / Bag

Part No.	W1	Mounting Hole	Chassis Thickness	Packing
PHC-1105	11.0	AS Figure	0.5 ~ 1.2	100 pcs / Bag

Part No.	W1	Mounting Hole	Chassis Thickness	Packing
PHC-1509	7.8	6.0	2.0	100 pcs / Bag
