NYLON CABLE GLAND (WITH STRAIN RELIEF)

BANDEX
CABLE ACCESSORIES

●	Strain relief design protect cable from breakage /right angle bending
●	Material: UL94V-2 flame rated, UL approved Nylon 66, TPE for Seal, PVC for Washer.
●	Color: Black, available in other colors.
●	EG-SR series without washer, NPT-SR without washer and lock nut.

Metric Thread

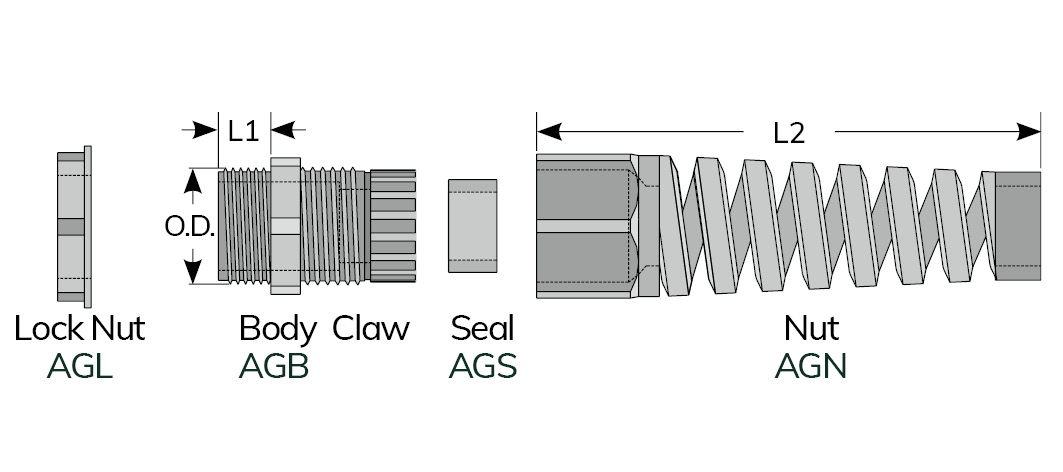

Part No. Thread Thread O.D. Mounting Hole L1 L2 Cable Range Packing
AG-12SR M12xP1.25 12.0 12.0+0.2 7.9 53.3 3.0~6.5 50 pcs / Bag
AG-16SR M16xP1.5 16.0 16.0+0.2 15.5 74.4 5.0~10.0
AG-20SR M20xP1.5 20.0 20.0+0.2 15.0 96.2 10.0~14.0
AG-25SR M25xP1.5 25.0 25.0+0.3 15.2 111.2 13.0~18.0 25 pcs / Bag

PG Thread ※ Without washer
Part No. Thread Thread O.D. Mounting Hole L1 L2 Cable Range Packing
EG-7SR PG7 12.5 12.5+0.2 7.9 53.3 3.0~6.5 50 pcs / Bag
EG-9SR PG9 15.2 15.2+0.2 7.9 62.5 4.0~8.0
EG-11SR PG11 18.3 18.3+0.2 7.9 74.9 5.0~10.0
EG-13.5SR PG13.5 20.4 20.4+0.2 8.9 85.5 6.0~12.0
EG-16SR PG16 22.5 22.5+0.2 9.8 96.2 10.0~14.0
EG-21SR PG21 28.3 28.3+0.3 10.8 111.2 13.0~18.0 25 pcs / Bag

PF Thread
Part No. Thread Thread O.D. Mounting Hole L1 L2 Cable Range Packing
AGJ-14SR PF 1/4" 14.0 14.0+0.2 8.0 53.3 3.0~6.5 50 pcs / Bag
AGJ-17SR PF 3/8" 17.0 17.0+0.2 14.7 74.9 5.0~10.0
AGJ-21SR PF 1/2" 21.0 21.0+0.2 12.9 96.2 13.0~14.0
AGJ-27SR PF 3/4" 27.0 27.0+0.3 14.7 111.2 13.0~18.0 25 pcs / Bag

NPT Thread ※ Without washer and Lock Nut
Part No. Thread Thread O.D. Mounting Hole L1 L2 Cable Range Packing
NPT-14SR 1/4"-18NPT 13.2 13.2+0.2 7.8 53.3 3.0~6.5 50 pcs / Bag
NPT-38SR 3/8"-18NPT 16.7 16.7+0.2 14.6 74.9 5.0~10.0
NPT-12SR 1/2"-14NPT 21.2 21.2+0.2 12.9 96.2 10.0~14.0
NPT-34SR 3/4"-14NPT 26.3 26.3+0.3 14.5 111.2 13.0~18.0 25 pcs / Bag

HAYATA P.C. ENTERPRISE CO., LTD.
- Last Updated 4 Februaryl 2026 -

Metric Thread
Part No.	Thread	Thread O.D.	Mounting Hole	L1	L2	Cable Range	Packing
AG-12SR	M12xP1.25	12.0	12.0+0.2	7.9	53.3	3.0~6.5	50 pcs / Bag
AG-16SR	M16xP1.5	16.0	16.0+0.2	15.5	74.4	5.0~10.0
AG-20SR	M20xP1.5	20.0	20.0+0.2	15.0	96.2	10.0~14.0
AG-25SR	M25xP1.5	25.0	25.0+0.3	15.2	111.2	13.0~18.0	25 pcs / Bag

PG Thread ※ Without washer
Part No.	Thread	Thread O.D.	Mounting Hole	L1	L2	Cable Range	Packing
EG-7SR	PG7	12.5	12.5+0.2	7.9	53.3	3.0~6.5	50 pcs / Bag
EG-9SR	PG9	15.2	15.2+0.2	7.9	62.5	4.0~8.0
EG-11SR	PG11	18.3	18.3+0.2	7.9	74.9	5.0~10.0
EG-13.5SR	PG13.5	20.4	20.4+0.2	8.9	85.5	6.0~12.0
EG-16SR	PG16	22.5	22.5+0.2	9.8	96.2	10.0~14.0
EG-21SR	PG21	28.3	28.3+0.3	10.8	111.2	13.0~18.0	25 pcs / Bag

PF Thread
Part No.	Thread	Thread O.D.	Mounting Hole	L1	L2	Cable Range	Packing
AGJ-14SR	PF 1/4"	14.0	14.0+0.2	8.0	53.3	3.0~6.5	50 pcs / Bag
AGJ-17SR	PF 3/8"	17.0	17.0+0.2	14.7	74.9	5.0~10.0
AGJ-21SR	PF 1/2"	21.0	21.0+0.2	12.9	96.2	13.0~14.0
AGJ-27SR	PF 3/4"	27.0	27.0+0.3	14.7	111.2	13.0~18.0	25 pcs / Bag
