| BUSHING GLAND |
 |
To be applied for fixation and pretection of cables.
 |
| ● | Material: PVC |
| ● | Color: Black |
| ● | Interior diameter of each gland avaliable in three sizes D.E.F. Cut unnecessary part(s) optionally to fit your different cable diameters. |
| ● | To be applied for fixation and pretection of cables. |
|
 |

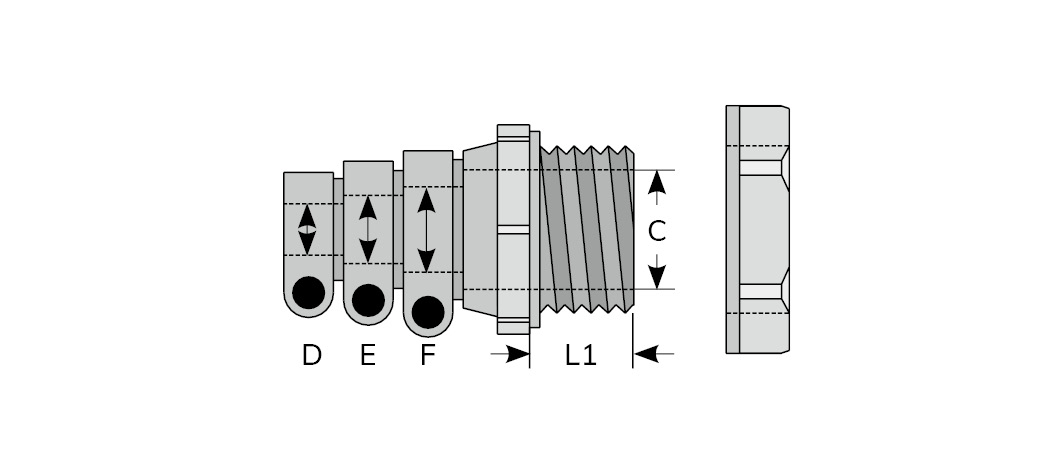

| Part No. | Thread O.D. | Mounting Hole | L1 | C | D | E | F | Packing |
| KB-1 | 20.0 | 20.0+0.2 | 13.0 | 14.0 | 6.0 | 8.0 | 10.0 | 50 pcs / Bag |
| KB-2 | 22.0 | 22.0+0.2 | 17.5 | 16.6 | 10.0 | 13.0 | 15.0 |
