Multi-Hole Nylon Cable Gland (6 HOLES)
Multi-Hole Nylon Cable Gland (6 HOLES)
●Material: UL approved Nylon 66, 94V-2
●Color: Black, available in other colors.
●Multi-Hole Design organizes more than one cables within a gland.

Metric Thread

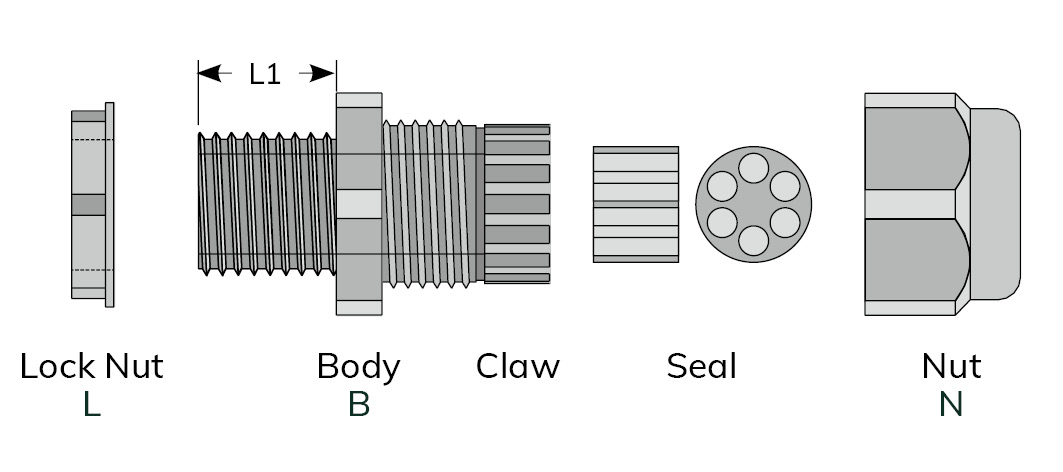

Part No.ThreadMounting HoleL1Cable RangePacking
 AG-16-6AM16x1.516.0~16.315.51.4~2.150 pcs / Bag
 AG-16S-6AM16x1.516.0~16.310.01.4~2.1
 AG-20-6AM20x1.520.0~20.315.01.3~2.0
 AG-20-6BM20x1.520.0~20.315.02.0~3.0
 AG-20S-6AM20x1.520.0~20.310.01.3~2.0
 AG-20S-6BM20x1.520.0~20.310.02.0~3.0
 AG-25-6AM25x1.525.0~25.415.21.3~2.0
 AG-25-6BM25x1.525.0~25.415.22.0~3.0
 AG-25-6CM25x1.525.0~25.415.22.6~3.6
 AG-25-6DM25x1.525.0~25.415.23.6~5.2
 AG-25S-6AM25x1.525.0~25.410.01.3~2.0
 AG-25S-6BM25x1.525.0~25.410.02.0~3.0
 AG-25S-6CM25x1.525.0~25.410.02.6~3.6
 AG-25S-6DM25x1.525.0~25.410.03.6~5.2
 AG-32-6AM32x1.532.0~32.414.72.6~3.625 pcs / Bag
 AG-32-6BM32x1.532.0~32.414.73.6~5.2
 AG-32-6CM32x1.532.0~32.414.75.6~7.0

PG thread　※Without Washer
Part No.ThreadMounting HoleL1Cable RangePacking
 EG-11-6APG1118.6~18.97.91.4~2.150 pcs / Bag
 EG-11L-6APG1118.6~18.914.91.4~2.1
 EG-16-6APG1622.5~22.89.81.3~2.0
 EG-16-6BPG1622.5~22.89.82.0~3.0
 EG-21-6APG2128.3~28.710.81.3~2.0
 EG-21-6BPG2128.3~28.710.82.0~3.0
 EG-21-6CPG2128.3~28.710.82.6~3.6
 EG-21-6DPG2128.3~28.710.83.6~5.2
 EG-29-6APG2937.0~37.410.82.6~3.625 pcs / Bag
 EG-29-6BPG2937.0~37.410.83.6~5.2
 EG-29-6CPG2937.0~37.410.85.6~7.0

PF Thread
Part No.ThreadMounting HoleL1Cable RangePacking
 AGJ-17-6APF 3/817.0~17.37.91.4~2.150 pcs / Bag
 AGJ-21-6APF 1/221.0~21.312.91.3~2.0
 AGJ-21-6BPF 1/221.0~21.312.92.0~3.0
 AGJ-27-6APF 3/427.0~27.314.71.3~2.0
 AGJ-27-6BPF 3/427.0~27.314.72.0~3.0
 AGJ-27-6CPF 3/427.0~27.314.72.6~3.6
 AGJ-27-6DPF 3/427.0~27.314.73.6~5.2
 AGJ-34-6APF 134.0~34.410.82.6~3.625 pcs / Bag
 AGJ-34-6BPF 134.0~34.410.83.6~5.2
 AGJ-34-6CPF 134.0~34.410.85.6~7.0

NPT thread　※Without Washer and Nut
Part No.ThreadMounting HoleL1Cable RangePacking
 NPT-38-6A3/8-18 NPT16.7~17.014.61.4~2.150 pcs / Bag
 NPT-12-6A1/2-14 NPT21.2~21.512.91.3~2.0
 NPT-12-6B1/2-14 NPT21.2~21.512.92.0~3.0
 NPT-34-6A3/4-14 NPT26.3~26.614.51.3~2.0
 NPT-34-6B3/4-14 NPT26.3~26.614.52.0~3.0
 NPT-34-6C3/4-14 NPT26.3~26.614.52.6~3.6
 NPT-34-6D3/4-14 NPT26.3~26.614.53.6~5.2
 NPT-1-6A1-11.5 NPT33.2~33.614.92.6~3.625 pcs / Bag
 NPT-1-6B1-11.5 NPT33.2~33.614.93.6~5.2
 NPT-1-6C1-11.5 NPT33.2~33.614.95.6~7.0
