| ● | Material: TPE |
| ● | Function: To be used with cable gland and gather various cables into it. |
|

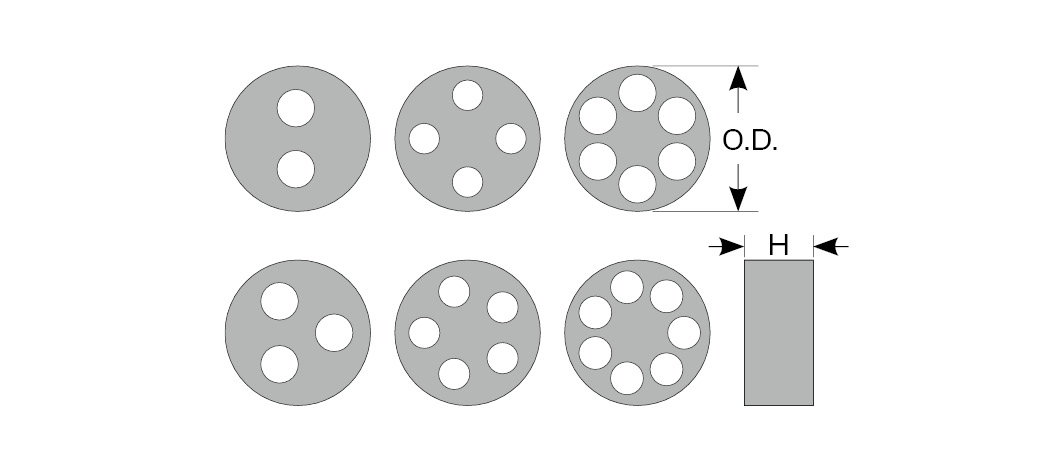

| Part No. | Cable Range | O.D.
D | W | Cable Gland Suitable | Packing |
| MH9-2A | 2.0-3.1 | 9 | 7.3 | AG-12, EG-7, AGJ-14, NPT-14 | 50 pcs / Bag |
| MH9-3A | 1.6-2.6 |
| MH9-4A | 1.3-2.3 |
| Part No. | Cable Range | O.D.
D | W | Cable Gland Suitable | Packing |
| MH14-2A | 1.6-2.6 | 14 | 9.2 | AG-16, EG-11, AGJ-17, NPT-38 | 50 pcs / Bag |
| MH14-2B | 2.0-3.1 |
| MH14-2C | 3.0-4.1 |
| MH14-3A | 1.6-2.6 |
| MH14-3B | 2.0-3.0 |
| MH14-3C | 3.0-4.2 |
| MH14-4A | 1.3-2.3 |
| MH14-4B | 1.4-2.4 |
| MH14-4C | 2.4-3.4 |
| MH14-5A | 2.0-2.8 |
| MH14-6A | 1.4-2.1 |
| Part No. | Cable Range | O.D.
D | W | Cable Gland Suitable | Packing |
| MH18-2A | 1.6-2.6 | 17.5 | 9 | AG-20, EG-16, AGJ-21, NPT-12 | 50 pcs / Bag |
| MH18-2B | 2.0-3.0 |
| MH18-2C | 2.5-3.5 |
| MH18-2D | 3.0-4.1 |
| MH18-2E | 3.3-4.3 |
| MH18-2F | 3.5-5.2 |
| MH18-2G | 4.3-6.1 |
| MH18-3A | 2.0-3.0 |
| MH18-3B | 2.6-3.6 |
| MH18-3C | 3.0-4.2 |
| MH18-3D | 3.5-5.0 |
| MH18-3E | 3.5-5.2 |
| MH18-4A | 1.4-2.4 |
| MH18-4B | 1.6-2.5 |
| MH18-4C | 2.4-3.4 |
| MH18-4D | 2.5-3.6 |
| MH18-4E | 3.0-4.2 |
| MH18-4F | 3.4-4.8 |
| MH18-5A | 1.3-2.0 |
| MH18-5B | 2.0-2.8 |
| MH18-5C | 2.0-3.1 |
| MH18-5D | 3.0-4.1 |
| MH18-6A | 1.3-2.0 |
| MH18-6B | 2.0-3.0 |
| MH18-7A | 1.3-2.0 |
| MH18-7B | 2.0-3.0 |
| Part No. | Cable Range | O.D.
D | W | Cable Gland Suitable | Packing |
| MH23-2A | 2.5-3.5 | 22.8 | 11.2 | AG-25, EG-21, AGJ-27, NPT-34 | 50 pcs / Bag |
| MH23-2B | 3.3-4.3 |
| MH23-2C | 3.5-5.1 |
| MH23-2D | 4.3-6.1 |
| MH23-2E | 5.1-6.5 |
| MH23-2F | 6.4-8.7 |
| MH23-3A | 2.6-3.6 |
| MH23-3B | 3.6-5.2 |
| MH23-3C | 4.8-6.2 |
| MH23-3D | 6.2-8.0 |
| MH23-4A | 1.6-2.5 |
| MH23-4B | 2.0-3.1 |
| MH23-4C | 2.5-3.6 |
| MH23-4D | 3.0-4.1 |
| MH23-4E | 3.4-4.8 |
| MH23-4F | 3.8-5.2 |
| MH23-4G | 5.6-7.3 |
| MH23-5A | 1.3-2.0 |
| MH23-5B | 2.0-3.1 |
| MH23-5C | 2.6-3.6 |
| MH23-5D | 3.0-4.1 |
| MH23-5E | 3.6-4.6 |
| MH23-5F | 4.6-6.0 |
| MH23-6A | 1.3-2.0 |
| MH23-6B | 2.0-3.0 |
| MH23-6C | 2.6-3.6 |
| MH23-6D | 3.6-5.2 |
| MH23-7A | 1.3-2.0 |
| MH23-7B | 2.0-3.0 |
| MH23-7C | 2.6-3.6 |
| Part No. | Cable Range | O.D.
D | W | Cable Gland Suitable | Packing |
| MH30-2A | 3.6-5.2 | 30.4 | 14.4 | AG-32, EG-29, AGJ-34, NPT-1 | 25 pcs / Bag |
| MH30-2B | 5.1-6.5 |
| MH30-2C | 6.4-8.7 |
| MH30-2D | 7.7-10.0 |
| MH30-3A | 3.6-5.2 |
| MH30-3B | 4.8-6.2 |
| MH30-3C | 6.2-8.0 |
| MH30-3D | 7.7-10.0 |
| MH30-4A | 2.0-3.1 |
| MH30-4B | 3.0-4.1 |
| MH30-4C | 3.8-5.2 |
| MH30-4D | 5.6-7.3 |
| MH30-4E | 7.0-9.0 |
| MH30-5A | 2.6-3.6 |
| MH30-5B | 3.6-4.6 |
| MH30-5C | 4.6-6.0 |
| MH30-5D | 6.0-8.0 |
| MH30-6A | 2.6-3.6 |
| MH30-6B | 3.6-5.2 |
| MH30-6C | 5.6-7.0 |
| MH30-7A | 2.6-3.6 |
| MH30-7B | 4.6-6.0 |
| Part No. | Cable Range | O.D.
D | W | Cable Gland Suitable | Packing |
| MH39-2A | 7.0-9.0 | 39 | 8.3 | AG-40, NPT-114 | 10 pcs / Bag |
| MH39-2B | 11.0-13.0 |
| MH39-3A | 6.5-8.3 |
| MH39-3B | 7.7-10.0 |
| MH39-4A | 10.0-12.0 |
| MH39-5A | 6.5-8.3 |
| Part No. | Cable Range | O.D.
D | W | Cable Gland Suitable | Packing |
| MH16-2A | 3.5-5.2 | 16 | 8.4 | EG13.5 | 50 pcs / Bag |
| MH16-3A | 3.5-5.0 |
| MH16-4A | 3.2-4.0 |
| Part No. | Cable Range | O.D.
D | W | Cable Gland Suitable | Packing |
| MH42-2A | 7.0-9.0 | 41.8 | 8.3 | EG-36 | 10 pcs / Bag |
| MH42-2B | 11.0-13.0 |
| MH42-3A | 6.5-8.3 |
| MH42-3B | 7.7-10.0 |
| MH42-4A | 10.0-12.0 |
| MH42-5A | 6.5-8.3 |
| Part No. | Cable Range | O.D.
D | W | Cable Gland Suitable | Packing |
| MH11-2A | 2.0-3.1 | 11 | 8 | EG-9 | 50 pcs / Bag |
| MH11-3A | 1.6-2.6 |
| MH11-4A | 1.3-2.3 |
