FLAT-HOLE SEAL

● Material: TPE ● Function: To be used with cable gland, for flat cable. ● Ordering information: While ordering cable gland with flat seal, please add the letter to the suffix part number of cable gland. ● For example: AG-12 (CABLE GLAND) + MH9-FA (FLAT SEAL) = AG-12-FA NPT-34 (CABLE GLAND) + MH23-FD (FLAT SEAL) = NPT-34-FD EG-36 (CABLE GLAND) + MH39-FB (FLAT SEAL) = EG-36-FB

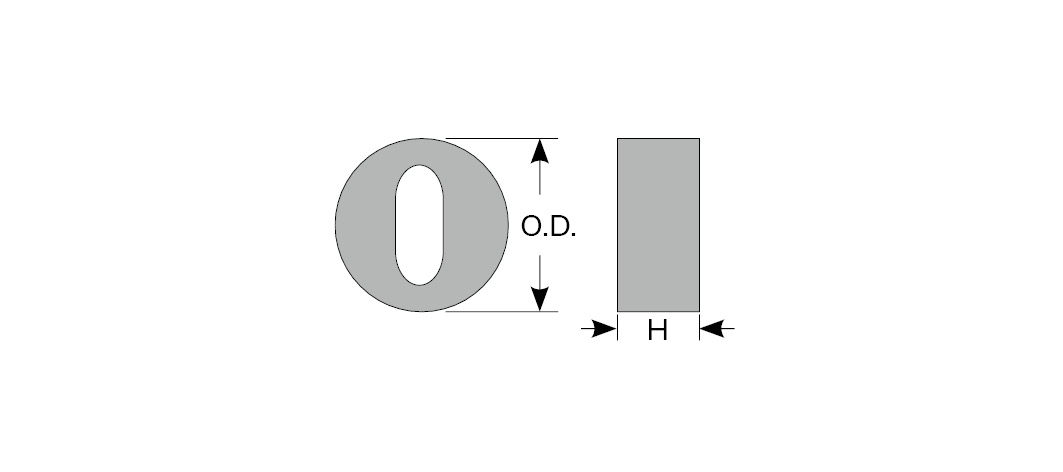

Part No.	Cable Range	O.D.	H	Cable Gland Suitable	Packing
MH9-FA	6.9 x 2.3	9	7.3	AG-12, EG-7, AGJ-14, NPT-14	50 pcs / Bag

Part No.	Cable Range	O.D.	H	Cable Gland Suitable	Packing
MH14-FA	6.9 x 2.3	14	9.2	AG-16, EG-11, AGJ-17, NPT-38	50 pcs / Bag
MH14-FB	9.8 x 6.0

Part No.	Cable Range	O.D.	H	Cable Gland Suitable	Packing
MH18-FA	9.8 x 6.0	17.5	9	AG-20, EG-16, AGJ-21, NPT-12	50 pcs / Bag
MH18-FB	11.3 x 5.0
MH18-FC	11.8 x 6.5
MH18-FD	11.8 x 7.0
MH18-FE	13.8 x 6.0
MH18-FF	13.8 x 7.0

Part No.	Cable Range	O.D.	H	Cable Gland Suitable	Packing
MH23-FA	11.8 x 6.5	22.8	11.2	AG-25, EG-21, AGJ-27, NPT-34	50 pcs / Bag
MH23-FB	11.8 x 7.0
MH23-FC	13.8 x 6.0
MH23-FD	13.8 x 7.0

Part No.	Cable Range	O.D.	H	Cable Gland Suitable	Packing
MH30-FA	13.8 x 6.0	30.4	14.4	AG-32, EG-29, AGJ-34, NPT-1	25 pcs / Bag
MH30-FB	13.8 x 7.0
MH30-FC	21.8 x 8.0

Part No.	Cable Range	O.D.	H	Cable Gland Suitable	Packing
MH39-FA	28.3x 10.0	39	8.3	AG-40, NPT-114	10 pcs / Bag
MH39-FB	28.8 x 5.5

Part No.	Cable Range	O.D.	H	Cable Gland Suitable	Packing
MH16-FA	11.3 x 5.0	16	8.4	EG13.5	50 pcs / Bag

Part No.	Cable Range	O.D.	H	Cable Gland Suitable	Packing
MH42-FA	28.3 x 5.5	41.8	8.3	EG-36	10 pcs / Bag
MH42-FB	28.5 x 10.0

Part No.	Cable Range	O.D.	H	Cable Gland Suitable	Packing
MH11-FA	6.9 x 2.3	11	8	EG-9	50 pcs / Bag
