| FLEXIBLE CONDUIT ADAPTOR |
  |
 |
| ● | Material: UL94V-2 flame rated, UL approved Nylon 66. |
| ● | Color: Grey |

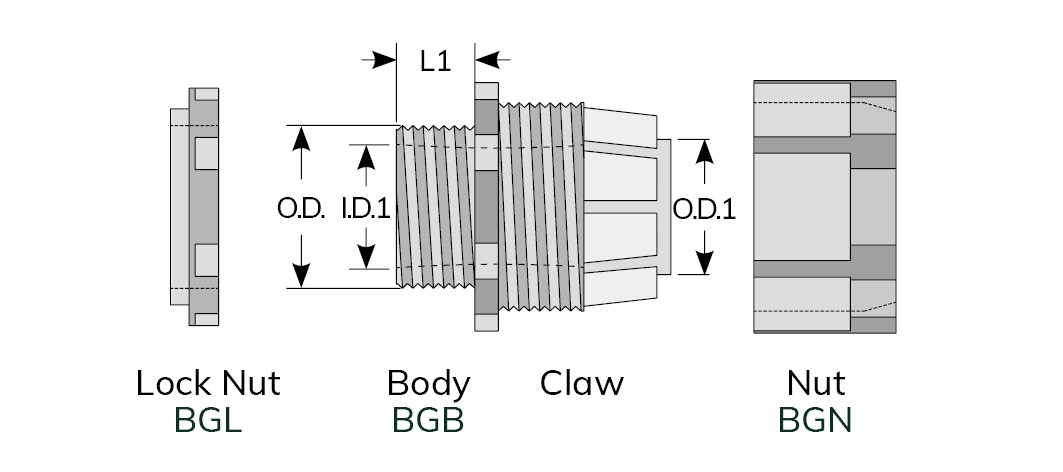

| ● | Constructed of three parts to fix flexible conduit in control panel, machinery and apparatus. |
| ● | Application |
| 1. | Mount body to pre-drilled panel hole. |
| 2. | Insert conduit through nut. |
| 3. | Insert conduit to claw and fix it with nut to complete works. |
| ※ | Available in LDPE material upon request. |
|
 |
| Part No. | Thread | Thread O.D | Mounting Hole | O.D.1 | I.D.1 | L1 | Suitable Conduit | Packing |
| BG-10 | M12x1.25 | 12.0 | 12.0+0.2 | 7.5 | 5.8 | 9.7 | BG-10P | 50 pcs / Bag |
| BG-14 | | 18.0 | 18.0+0.2 | 10.5 | 9.0 | 10.0 | BG-14P |
| BG-16 | | 18.0 | 18.0+0.2 | 10.8 | 9.0 | 10.0 | BG-16P |
| BG-18 | M16x1.5 | 16.0 | 16.0+0.2 | 13.3 | 10.8 | 9.7 | BG-18P |
| BG-20 | | 21.0 | 21.0+0.2 | 14.7 | 12.9 | 10.0 | BG-20P |
| BG-22 | M20x1.5 | 20.0 | 20.0+0.2 | 17.2 | 14.8 | 9.8 | BG-22P |
| BG-25 | M25x1.5 | 25.0 | 25.0+0.3 | 18.9 | 16.6 | 11.4 | BG-25P |
| BG-26 | M25x1.5 | 25.0 | 25.0+0.3 | 19.8 | 17.6 | 11.4 | BG-26P |
| BG-32 | | 33.0 | 33.0+0.3 | 24.3 | 22.3 | 12.0 | BG-32P | 25 pcs / Bag |
| BG-34 | M34x1.5 | 34.0 | 34.0+0.3 | 28.6 | 25.5 | 11.3 | BG-34P |
| BG-40 | | 39.5 | 39.5+0.3 | 31.6 | 29.0 | 11.3 | BG-40P |
| BG-42 | M40x1.5 | 40.0 | 40.0+0.3 | 34.8 | 31.4 | 11.5 | BG-42P |
| BG-48 | | 46.0 | 46.0+0.3 | 40.5 | 36.9 | 12.6 | BG-48P | 10 pcs / Bag |
| BG-50 | | 46.0 | 46.0+0.3 | 39.5 | 36.9 | 12.6 | BG-50P |
