WATERPROOF FLEXIBLE CONDUIT ADAPTOR

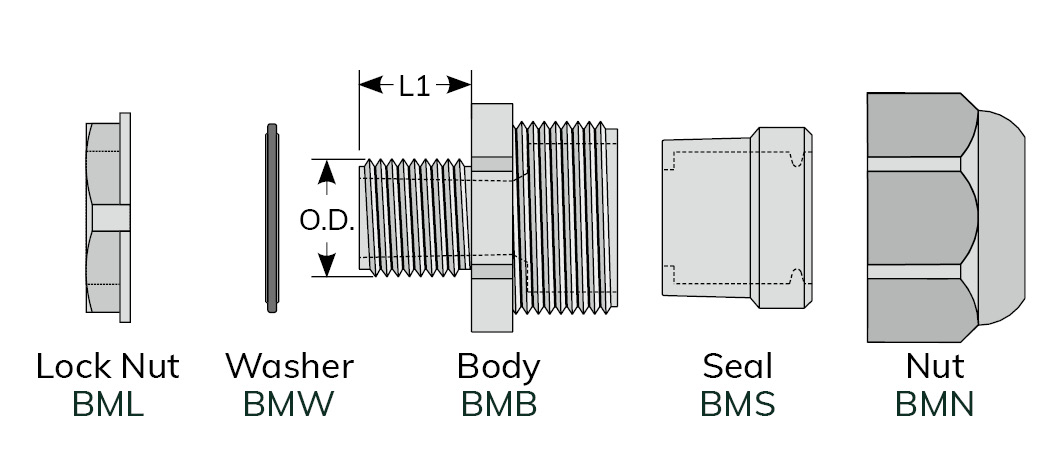

● Material: UL94V-2 flame rated, UL approved Nylon 66, TPE for Seal, PVC for Washer. ● Color: Black. ● Function: Fix flexible conduit and provide waterproof protection in control panel, machinery and apparatus. ● Application 1. Mount body to pre-drilled panel hole. 2. Insert conduit through nut into seal and fix it by twisting nut. ※ Available to order the accessories separately. Follow the drawing and add the letter to the suffix part number, L for locknut, W for washer, B for body, S for seal, N for nut. For example, BML-18 if you would like to only order locknut for BM-18.

Part No.	Thread	Thread O.D	Mounting Hole	L1	Suitable Conduit	Packing
BM-18	M16xP1.5	16.0	16.0+0.2	15.0	BG-16P、BG-18P、 CRS-11P、CRS-13P、 PA-12、CF-18P	50 pcs / Bag
BM-22	M20xP1.5	20.0	20.0+0.2	15.0	BG-20P、BG-22P、 CRS-15P、CRS-17P、 PA-17、CF-22P
BM-26	M25xP1.5	25.0	25.0+0.3	15.0	BG-25P、BG-26P、 CRS-19P、CRS-22P、 CF-26P
BM-34	M32xP1.5	32.0	32.0+0.3	15.0	BG-32P、BG-34P、 CRS-28P、PA-29、 CF-34P	25 pcs / Bag
BM-42	M40xP1.5	40.0	40.0+0.3	15.0	BG-40P、BG-42P、 CRS-32P、CRS-35P、 PA-36、CF-42P	10 pcs / Bag
BM-48	M50xP1.5	46.0	46.0+0.3	22.4	BG-48P
