HDPE FLEXIBLE CONDUIT

BANDEX
CABLE ACCESSORIES

●	Material: PE(EVA available)
●	For running cable protection in Electrical/Machinery/Building Harness wiring.
●	Flexible body facilitate your corner /elbow wiring.

● Close design

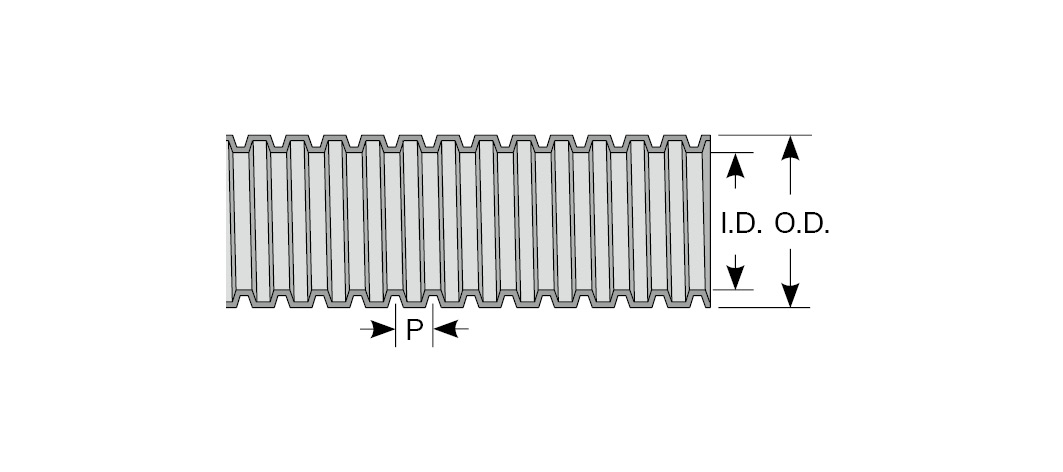

Part No. I.D. O.D P Suitable Adaptor Packing
BG-10P 7.4±0.4 10.2±0.4 2.6±0.3 BG-10 300 M / Roll
BG-14P 10.7±0.4 14.1±0.4 2.6±0.3 BG-14 100 M / Roll
BG-16P 10.7±0.4 16.0±0.4 3.2±0.4 BG-16, BGQ-16
BG-18P 13.8±0.4 17.5±0.4 3.2±0.4 BG-18, BGQ-18
BG-20P 14.1±0.4 20.0±0.4 3.8±0.4 BG-20, BGQ-20
BG-22P 17.2±0.4 22.0±0.4 3.2±0.4 BG-22, BGQ-22
BG-25P 18.3±0.4 25.0±0.4 4.3±0.4 BG-25, BGQ-25
BG-26P 21.2±0.4 25.8±0.4 3.2±0.4 BG-26, BGQ-26
BG-32P 24.3±0.4 32.0±0.4 5.0±0.5 BG-32, BGQ-32 50 M / Roll
BG-34P 28.7±0.4 34.0±0.4 3.2±0.4 BG-34, BGQ-34
BG-40P 31.2±0.4 40.0±0.4 5.8±0.5 BG-40
BG-42P 34.9±0.4 42.0±0.4 3.2±0.4 BG-42
BG-48P 40.0±0.5 48.0±0.5 4.6±0.4 BG-48
BG-50P 39.6±0.5 50.0±0.5 7.4±0.6 BG-50
BG-55P 47.5±0.4 54.5±0.5 3.2±0.4
BG-60P 52.0±0.5 60.0±0.5 6.2±0.5
BG-76P 62.0±0.5 76.0±0.5 6.2±0.5 30 M / Roll

HAYATA P.C. ENTERPRISE CO., LTD.
- Last Updated 4 Februaryl 2026 -

● Close design

Part No.	I.D.	O.D	P	Suitable Adaptor	Packing
BG-10P	7.4±0.4	10.2±0.4	2.6±0.3	BG-10	300 M / Roll
BG-14P	10.7±0.4	14.1±0.4	2.6±0.3	BG-14	100 M / Roll
BG-16P	10.7±0.4	16.0±0.4	3.2±0.4	BG-16, BGQ-16
BG-18P	13.8±0.4	17.5±0.4	3.2±0.4	BG-18, BGQ-18
BG-20P	14.1±0.4	20.0±0.4	3.8±0.4	BG-20, BGQ-20
BG-22P	17.2±0.4	22.0±0.4	3.2±0.4	BG-22, BGQ-22
BG-25P	18.3±0.4	25.0±0.4	4.3±0.4	BG-25, BGQ-25
BG-26P	21.2±0.4	25.8±0.4	3.2±0.4	BG-26, BGQ-26
BG-32P	24.3±0.4	32.0±0.4	5.0±0.5	BG-32, BGQ-32	50 M / Roll
BG-34P	28.7±0.4	34.0±0.4	3.2±0.4	BG-34, BGQ-34
BG-40P	31.2±0.4	40.0±0.4	5.8±0.5	BG-40
BG-42P	34.9±0.4	42.0±0.4	3.2±0.4	BG-42
BG-48P	40.0±0.5	48.0±0.5	4.6±0.4	BG-48
BG-50P	39.6±0.5	50.0±0.5	7.4±0.6	BG-50
BG-55P	47.5±0.4	54.5±0.5	3.2±0.4
BG-60P	52.0±0.5	60.0±0.5	6.2±0.5
BG-76P	62.0±0.5	76.0±0.5	6.2±0.5		30 M / Roll
