PP FLEXIBLE CONDUIT

● Material : PP ● Color: Black ● Function: For running cable protection in Electrical/Machinery/Building Harness wiring. ● For split design PP flexible conduit, can use the Split Wrapping Band Installation tool (see P.98) to wrap the wire easily. ※ It may be harder while inserting split design conduit to claw.

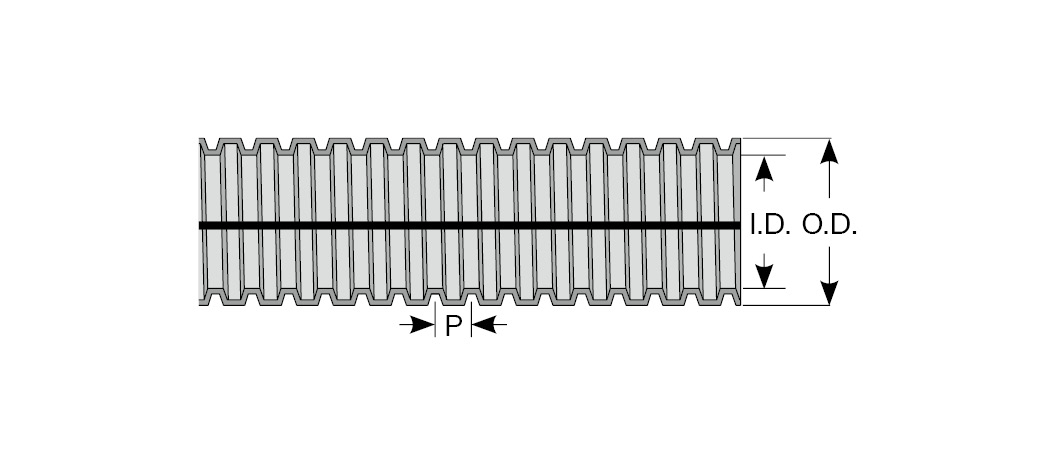

Part No.		I.D.	O.D	P	Suitable Adaptor	Packing
Split Design	Close Design
CRS-05P	CR-05P	5.6±0.4	7.9±0.4	2.6±0.3		300 M / Roll
CRS-07P	CR-07P	7.4±0.4	10.2±0.4	2.6±0.3	PAQ-0707 / PAQ-0709
CRS-11SP	CR-11SP	10.7±0.4	14.0±0.4	2.6±0.3		200 M / Roll
CRS-11P	CR-11P	10.7±0.4	16.0±0.4	3.3±0.4	PAQ-1216 / PAQ-1211 / PAQ-1209 / PAQ-12135 / BG-16 / BGQ-16
CRS-13P	CR-13P	13.8±0.4	17.5±0.4	3.0±0.4	BG-18 / BGQ-18 / BM-18
CRS-15P	CR-15P	15.0±0.4	19.5±0.4	3.3±0.4	BGQ-20 / BM-22	100 M / Roll
CRS-17P	CR-17P	17.2±0.4	22.0±0.4	3.0±0.4	PAQ-17135 / PAQ-1721 / BG-22 / BGQ-22 / BM-22
CRS-19P	CR-19P	19.3±0.4	23.8±0.4	3.3±0.4	BG-26 / BGQ-25 / BM-26
CRS-22P	CR-22P	21.2±0.4	25.8±0.4	3.0±0.4	BG-26 / BGQ-26 / BM-26
CRS-24P	CR-24P	24.3±0.4	32.0±0.4	4.6±0.4	BG-32 / BGQ-32	50 M / Roll
CRS-25P	CR-25P	25.0±0.4	30.0±0.4	4.0±0.4	BG-32
CRS-28P	CR-28P	28.0±0.4	34.0±0.4	3.0±0.4	BG-34 / BGQ-34 / BM-34
CRS-32P	CR-32P	31.2±0.4	40.0±0.4	5.8±0.5	BG-40 / BM-42
CRS-35P	CR-35P	34.9±0.4	42.0±0.4	3.3±0.4
CRS-40P	CR-40P	39.6±0.5	50.0±0.5	6.7±0.5	BG-48 / BG-50
CRS-48P	CR-48P	47.5±0.5	54.5±0.5	3.3±0.4	PAQ-4848
