NYLON FLEXIBLE CONDUIT

BANDEX
CABLE ACCESSORIES

●	Material: UL94HB flame rated Nylon 6.
●	Color: Black
●	For running cable protection in Electrical / Machinery/ Building Harness wiring.
●	Flexible body facilitate your corner /elbow wiring.

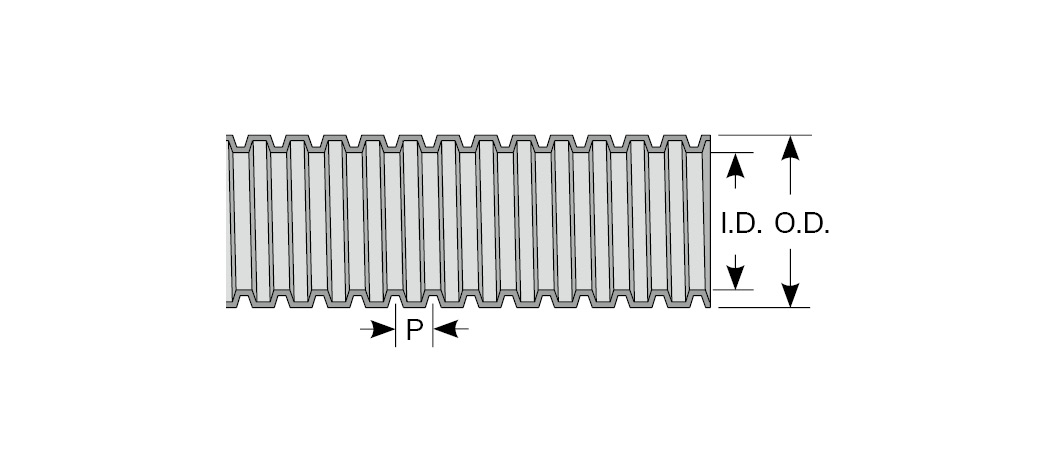

Part No. Trade Size I.D. O.D P Suitable Adaptor Packing
Close Design Split Design Inch
PA-07 PAO-07 1/4" 6.0±0.25 9.8±0.35 3.3±0.4 PAQ-0707, PAQ-0709 50 M / Roll
PA-10 PAO-10 5/16" 9.0±0.25 13.0±0.35 3.0±0.4 PAQ-1009
PA-12 PAO-12 3/8" 11.4±0.35 15.5±0.35 3.0±0.4 PAQ-1209, PAQ-1211, PAQ-12135, PAQ-1216
PA-17 PAO-17 1/2" 16.3±0.35 21.6±0.45 3.3±0.4 PAQ-17135, PAQ-1716, PAQ-1721
PA-23 PAO-23 3/4" 22.4±0.45 28.2±0.45 3.6±0.4 PAQ-2321
PA-29 PAO-29 1" 27.9±0.45 34.0±0.45 3.6±0.4 PAQ-2929
PA-36 PAO-36 1 1/4" 35.8±0.45 42.4±0.60 3.3±0.4 PAQ-3636 25 M / Roll
PA-48 PAO-48 2" 47.5±0.60 54.5±0.60 3.0±0.4 PAQ-4848

HAYATA P.C. ENTERPRISE CO., LTD.
- Last Updated 4 Februaryl 2026 -


Part No.		Trade Size	I.D.	O.D	P	Suitable Adaptor	Packing
Close Design	Split Design	Inch	I.D.	O.D	P	Suitable Adaptor	Packing
PA-07	PAO-07	1/4"	6.0±0.25	9.8±0.35	3.3±0.4	PAQ-0707, PAQ-0709	50 M / Roll
PA-10	PAO-10	5/16"	9.0±0.25	13.0±0.35	3.0±0.4	PAQ-1009
PA-12	PAO-12	3/8"	11.4±0.35	15.5±0.35	3.0±0.4	PAQ-1209, PAQ-1211, PAQ-12135, PAQ-1216
PA-17	PAO-17	1/2"	16.3±0.35	21.6±0.45	3.3±0.4	PAQ-17135, PAQ-1716, PAQ-1721
PA-23	PAO-23	3/4"	22.4±0.45	28.2±0.45	3.6±0.4	PAQ-2321
PA-29	PAO-29	1"	27.9±0.45	34.0±0.45	3.6±0.4	PAQ-2929
PA-36	PAO-36	1 1/4"	35.8±0.45	42.4±0.60	3.3±0.4	PAQ-3636	25 M / Roll
PA-48	PAO-48	2"	47.5±0.60	54.5±0.60	3.0±0.4	PAQ-4848	25 M / Roll
