HEAVY DUTY CONVEY FLEXIBLE CONDUIT

BANDEX
CABLE ACCESSORIES

●	Material: PE
●	Color: Black
●	Used to protect wiring inside the wall to replace normal PVC pipe. Flexible design for better wire running.

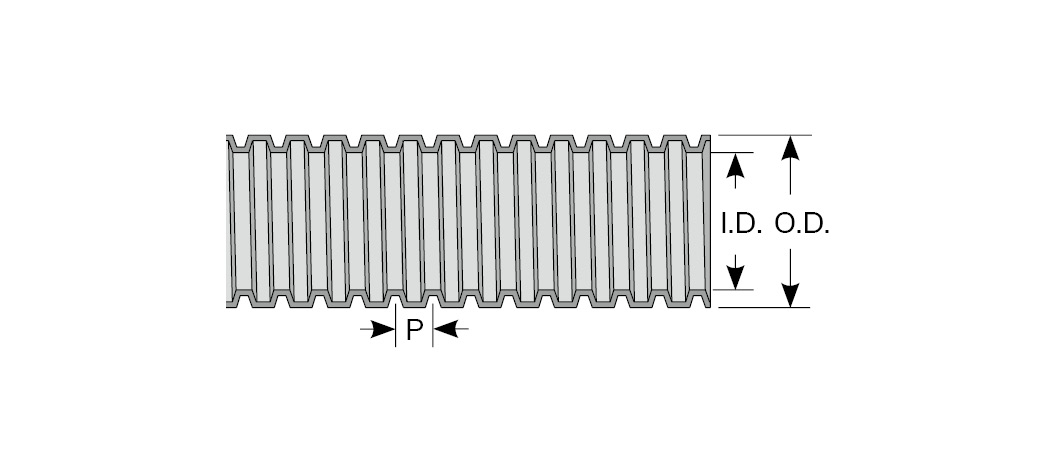

Part No. I.D. O.D P Suitable Adaptor Packing
CF-14P 10.7±0.4 14.1±0.4 2.6±0.3 BG-14 100 M / Roll
CF-18P 13.8±0.4 17.5±0.4 3.0±0.4 BG-18
CF-22P 17.2±0.4 22.0±0.4 3.0±0.4 BG-22
CF-26P 21.2±0.4 25.8±0.4 3.0±0.4 BG-26
CF-34P 28.7±0.4 34.0±0.4 3.0±0.4 BG-34 50 M / Roll
CF-42P 34.9±0.4 42.0±0.4 3.0±0.4

HAYATA P.C. ENTERPRISE CO., LTD.
- Last Updated 4 Februaryl 2026 -


Part No.	I.D.	O.D	P	Suitable Adaptor	Packing
CF-14P	10.7±0.4	14.1±0.4	2.6±0.3	BG-14	100 M / Roll
CF-18P	13.8±0.4	17.5±0.4	3.0±0.4	BG-18
CF-22P	17.2±0.4	22.0±0.4	3.0±0.4	BG-22
CF-26P	21.2±0.4	25.8±0.4	3.0±0.4	BG-26
CF-34P	28.7±0.4	34.0±0.4	3.0±0.4	BG-34	50 M / Roll
CF-42P	34.9±0.4	42.0±0.4	3.0±0.4		50 M / Roll
