PVC FLEXIBLE CONDUIT

BANDEX
CABLE ACCESSORIES

●	Material: UL94V-0 flame rated PVC, Nylon for Rope.
●	Color: Orange
●	Feature:
	1.	Compliant with RoHS.
	2.	Pre-inserted Nylon rope makes cable installation easier.
	3.	Great substitute for PVC pipe.
●	Application: Ideal use in indoor wirings such as optical fiber and telecommunication cable, vertical runs between floors, etc (except the plenum) .
●	Usage: Cut the conduit into required length and fix cables on the pre-inserted Nylon rope in one side, then pull out the rope from the other side to finish the installation.
※	Split design and special colors are available on request

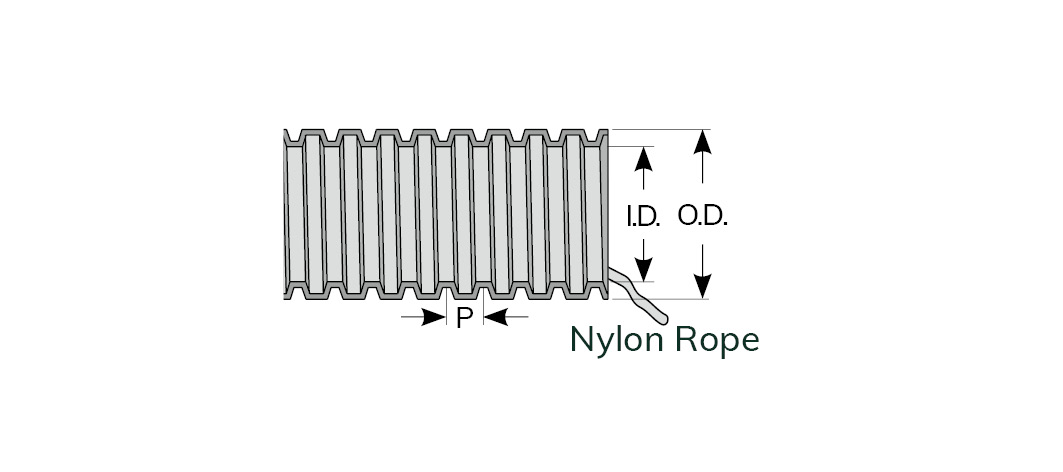

Close Design With Nylon Rope
Part No. Trade Size I.D. O.D P Packing
inch
CPW-26POE 1" 25.9 34.0 6.6±0.5 30.5 M / Roll
(100 FT)
CPW-34POE 1 1/4" 34.1 42.6 6.6±0.5
CPW-40POE 1 1/2" 39.5 48.3 6.6±0.5 15.3 M / Roll
(50 FT)
CPW-51POE 2" 50.8 60.5 6.6±0.5

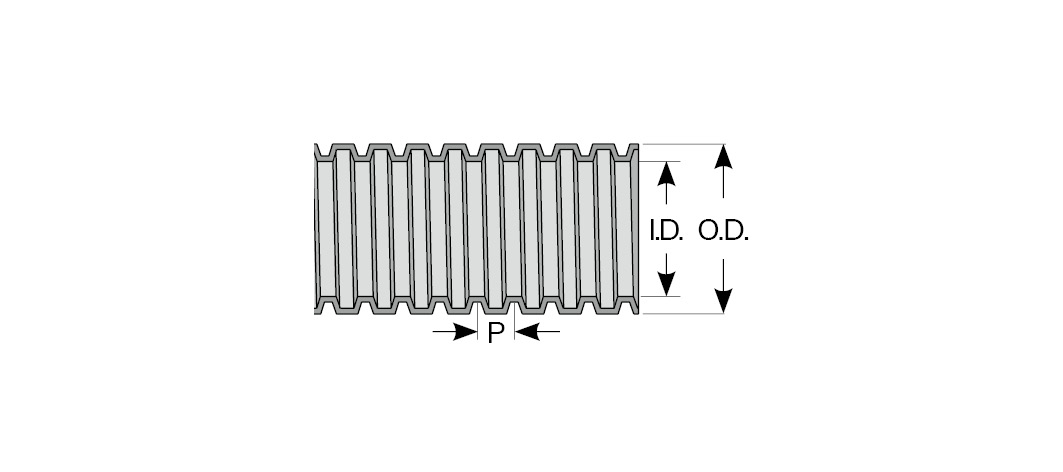

Close Design
Part No. Trade Size I.D. O.D P Packing
inch
CP-26POE 1" 25.9 34.0 6.6±0.5 30.5 M / Roll
(100 FT)
CP-34POE 1 1/4" 34.1 42.6 6.6±0.5
CP-40POE 1 1/2" 39.5 48.3 6.6±0.5 15.3 M / Roll
(50 FT)
CP-51POE 2" 50.8 60.5 6.6±0.5

HAYATA P.C. ENTERPRISE CO., LTD.
- Last Updated 4 Februaryl 2026 -

Close Design With Nylon Rope

Part No.	Trade Size	I.D.	O.D	P	Packing
Part No.	inch	I.D.	O.D	P	Packing
CPW-26POE	1"	25.9	34.0	6.6±0.5	30.5 M / Roll (100 FT)
CPW-34POE	1 1/4"	34.1	42.6	6.6±0.5	30.5 M / Roll (100 FT)
CPW-40POE	1 1/2"	39.5	48.3	6.6±0.5	15.3 M / Roll (50 FT)
CPW-51POE	2"	50.8	60.5	6.6±0.5	15.3 M / Roll (50 FT)

Close Design

Part No.	Trade Size	I.D.	O.D	P	Packing
Part No.	inch	I.D.	O.D	P	Packing
CP-26POE	1"	25.9	34.0	6.6±0.5	30.5 M / Roll (100 FT)
CP-34POE	1 1/4"	34.1	42.6	6.6±0.5	30.5 M / Roll (100 FT)
CP-40POE	1 1/2"	39.5	48.3	6.6±0.5	15.3 M / Roll (50 FT)
CP-51POE	2"	50.8	60.5	6.6±0.5	15.3 M / Roll (50 FT)
