● Material: Zinc Alloy ● Feature: Waterproof, Corrosion resistance, Heat resistance. ● To Apply, putting NUT and SEAL on the end of metal flexible conduit, then screw CLAW of the metal adaptor into metal flexible conduit till tight.

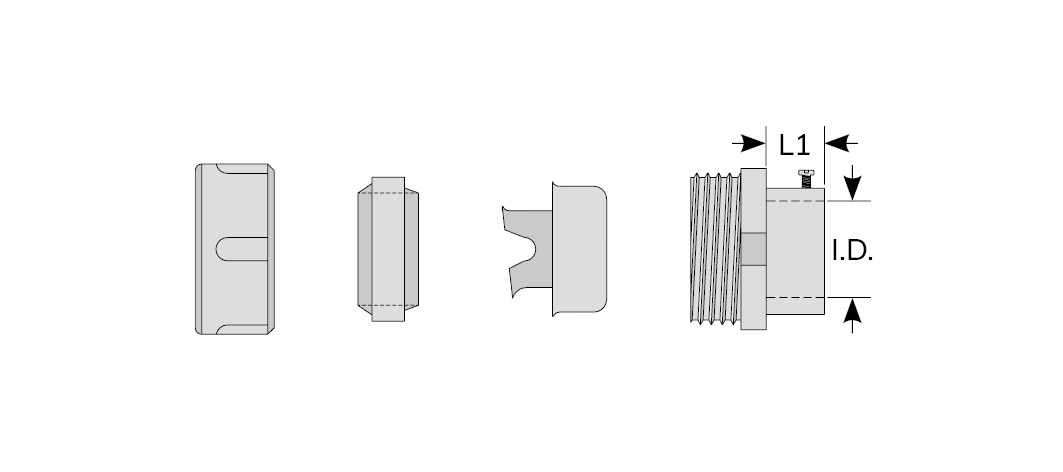

EMT pipe adaptor
Part No.	EMT Pipe	I.D.	L1	Suitable for metal flexible conduit	Packing
EBG-04	E19 (1/2")	19.6	12.5	MCR-04 (3/8")	50 pcs / Bag
EBG-05	E19 (1/2")	19.6	12.2	MCR-05 (1/2")
EBG-06	E25 (3/4")	26.2	13.6	MCR-06 (3/4")
EBG-08	E31 (1")	32.1	15.4	MCR-08 (1")	30 pcs / Bag
EBG-10	E39 (1 1/4")	38.6	19.7	MCR-10 (1 1/4")	20 pcs / Bag
EBG-12	E51 (1 1/2")	51.9	19.5	MCR-12 (1 1/2")	10 pcs / Bag
EBG-16	E63 (2")	64.4	25.8	MCR-16 (2")	5 pcs / Bag
EBG-20	E75 (2 1/2")	76.7	27.7	MCR-20 (2 1/2")	1 pcs / Bag
EBG-24	E82 (3")	89.8	29.6	MCR-24 (3")
EBG-32	E104 (4")	115.8	36.3	MCR-32 (4")
