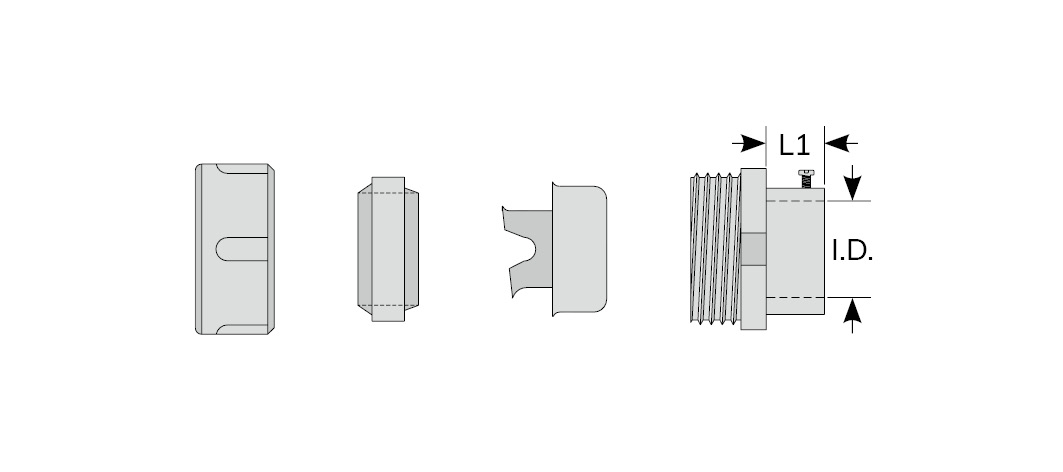

| METAL FLEXIBLE CONDUIT ADAPTOR |
|
 |
| ● | Material: Zinc Alloy |
| ● | Feature: Waterproof, Corrosion resistance, Heat resistance. |
| ● | To Apply, putting NUT and SEAL on the end of metal flexible conduit, then screw CLAW of the metal adaptor into metal flexible conduit till tight. |
|
PVC pipe adaptor
 |
| Part No. | PVC Pipe | I.D. | L1 | Suitable for metal flexible conduit | Packing |
| PBG-05 | #16 (1/2") | 22.3 | 14.6 | MCR-05 (1/2") | 50 pcs / Bag |
| PBG-06 | #20 (3/4") | 27.0 | 14.5 | MCR-06 (3/4") |
| PBG-08 | #28 (1") | 34.0 | 15.2 | MCR-08 (1") | 30 pcs / Bag |
| PBG-10 | #35 (1 1/4") | 43.7 | 16.9 | MCR-10 (1 1/4") | 20 pcs / Bag |
| PBG-12 | #41 (1 1/2") | 51.9 | 19.5 | MCR-12 (1 1/2") | 10 pcs / Bag |
| PBG-16 | #52 (2") | 64.4 | 25.8 | MCR-16 (2") | 5 pcs / Bag |
| PBG-20 | #65 (2 1/2") | 76.7 | 27.7 | MCR-20 (2 1/2") | 1 pcs / Bag |
| PBG-24 | #80 (3") | 89.8 | 29.6 | MCR-24 (3") |
| PBG-32 | #100 (4") | 115.8 | 36.3 | MCR-32 (4") |
