● Material: Zinc Alloy ● Feature: Waterproof, Corrosion resistance, Heat resistance. ● To Apply, putting NUT and SEAL on the end of metal flexible conduit, then screw CLAW of the metal adaptor into metal flexible conduit till tight.

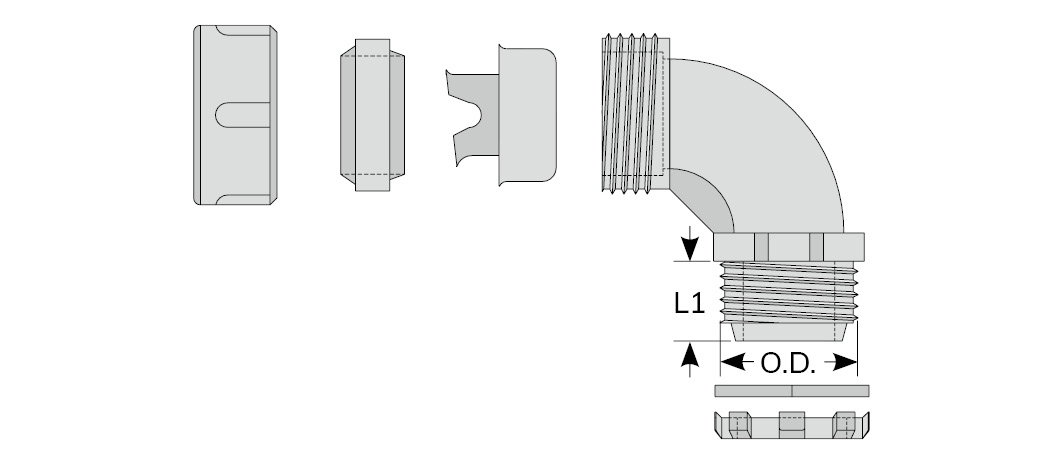

L type adaptor for control box
Part No.	Thread	Thread O.D.	Mounting Hole	L1	Suitable for metal flexible conduit	Packing
RBG-04	PT 1/2"	20.2	20.2±0.2	12.5	MCR-04 (3/8")	50 pcs / Bag
RBG-05	PT 1/2"	20.2	20.2±0.2	13.6	MCR-05 (1/2")
RBG-06	PT 3/4"	25.9	25.9±0.3	15.0	MCR-06 (3/4")
RBG-08	PT 1"	32.3	32.3±0.3	15.7	MCR-08 (1")	30 pcs / Bag
RBG-10	PT 1 1/4"	41.0	41.0±0.3	16.8	MCR-10 (1 1/4")	20 pcs / Bag
RBG-12	PT 1 1/2"	47.1	47.1±0.3	17.8	MCR-12 (1 1/2")	10 pcs / Bag
RBG-16	PT 2"	58.4	58.4±0.3	20.1	MCR-16 (2")	5 pcs / Bag
RBG-20	PT 2 1/2"	74.1	74.1±0.4	26.0	MCR-20 (2 1/2")	1 pcs / Bag
RBG-24	PT 3"	86.7	86.7±0.4	26.2	MCR-24 (3")
RBG-32	PT 4"	112.0	112.0±0.5	29.1	MCR-32 (4")
