MOVABLE BUSHING

● Material: PE, NYLON. Nylon product has more flexibility and better adhesion. ● Color: Natural. ● Usage: Cut to fit any hole sizes for cords, wires, cables protection against damage from sharp panel edges. ● Function: Wires and cables protection and insulation. ● Advantage: 1. Flexible, high adhesion, smooth surface. 2. KGH series packed with paper spool for easy storage, and could be used for longer time.

PE
Part No.	W1	Chassis Thickness	Packing
MB-008	0.8	0.8↓	10 M / Bag
MB-010	1.0	0.8 ~ 1.0
MB-010	1.0	1.0 ~ 1.2
MB-016	1.6	1.2 ~ 1.6
MB-020	2.0	1.6 ~ 2.0
MB-024	2.4	2.0 ~ 2.4
MB-032	3.2	2.4 ~ 3.2
MB-045	4.5	3.2 ~ 4.5
MBH-080	0.8	0.8↓	100 M / Roll
MBH-010	1.0	0.8 ~ 1.0
MBH-012	1.2	1.0 ~ 1.2
MBH-016	1.6	1.2 ~ 1.6
MBH-020	2.0	1.6 ~ 2.0
MBH-024	2.4	2.0 ~ 2.4
MBH-032	3.2	2.4 ~ 3.2
MBH-045	4.5	3.2 ~ 4.5

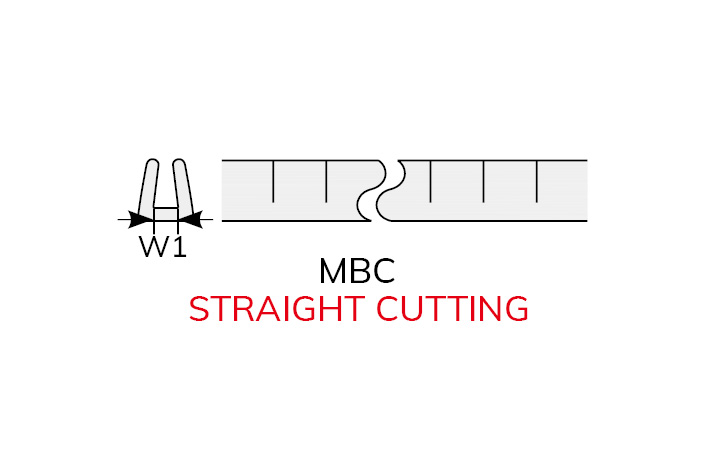

PE Straight Cutting
Part No.	W1	Chassis Thickness	Packing
MBC-012	1.2	1.0 ~ 1.2	10 M / Bag
MBC-016	1.6	1.2 ~ 1.6
MBC-020	2.0	1.6 ~ 2.0
MBC-024	2.4	2.0 ~ 2.4
MBC-032	3.2	2.4 ~ 3.2
MBC-045	4.5	3.2 ~ 4.5

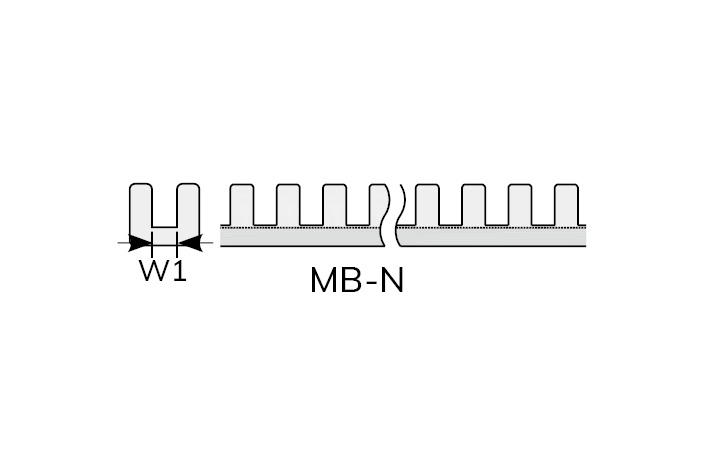

Nylon
Part No.	W1	Chassis Thickness	Packing
MB-010N	1.0	1.0↓	100 pcs / Bag
MB-014N	1.4	1.0 ~ 1.4
MB-016N	1.6	1.2 ~ 1.6
MB-020N	2.0	1.6 ~ 2.0
MB-024N	2.4	2.0 ~ 2.4
MB-032N	3.2	2.4 ~ 3.2
MB-045N	4.5	3.2 ~ 4.5
