EDGING GROMMET

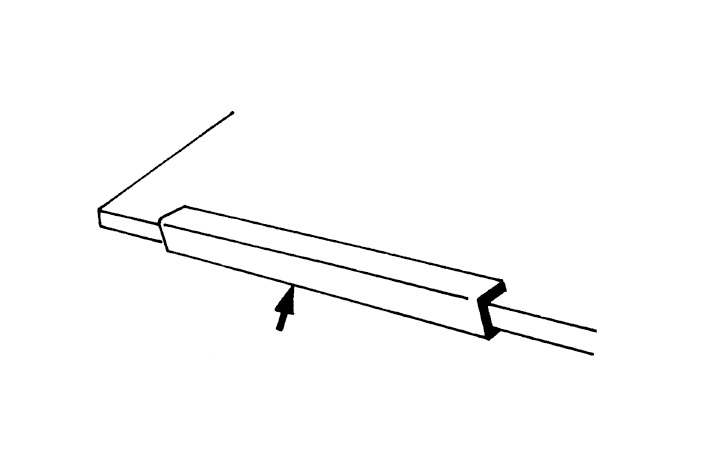

● Material: PE ● Color: Natural. ● Cut length optionally to fit your chassis edging protection or other application for smoothing edges. ● Protect wires, cables and chassis insulation.

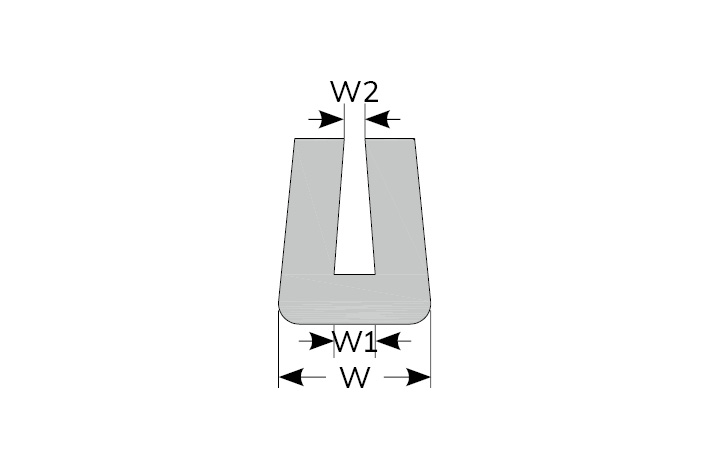

Part No.	W	W1	W2	Chassis Thickness	Packing
ED-010	3.3	1.0	0.5	1.0↓	10 M / Bag
ED-012	3.4	1.2	0.6	1.0 ~ 1.2
ED-016	4.6	1.6	0.9	1.2 ~ 1.6
ED-020	4.5	2.0	1.1	1.6 ~ 2.0
ED-024	5.1	2.4	1.2	2.0 ~ 2.4
ED-032	5.8	3.2	1.5	2.4 ~ 3.2
ED-055	7.9	5.5	4.5	4.5 ~ 5.5
