FLEXIBLE RIGHT ANGLE STRAIN RELIEF BUSHING

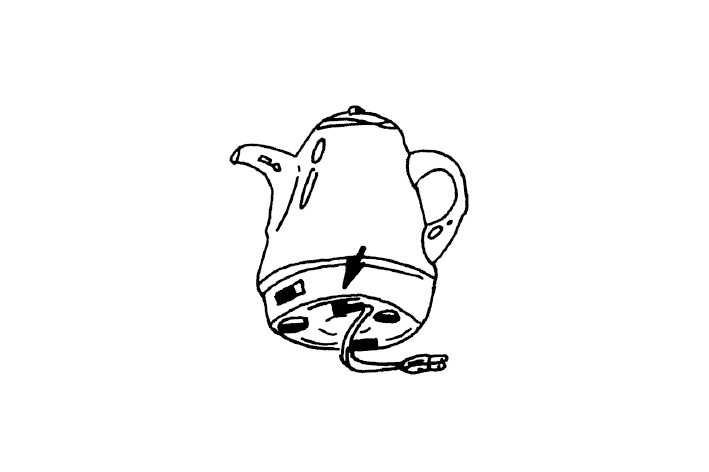

● Material: UL94V-2 flame rated, UL approved Nylon 66. ● Color: Black ● Protect power cable from computer, house appliance or electronic/electrical equipment when power cable run out from bottom of equipment. ● Strain relief design protect power cord from breakage. ● Assemble according to photos below. ※ Application Tool: KT-1

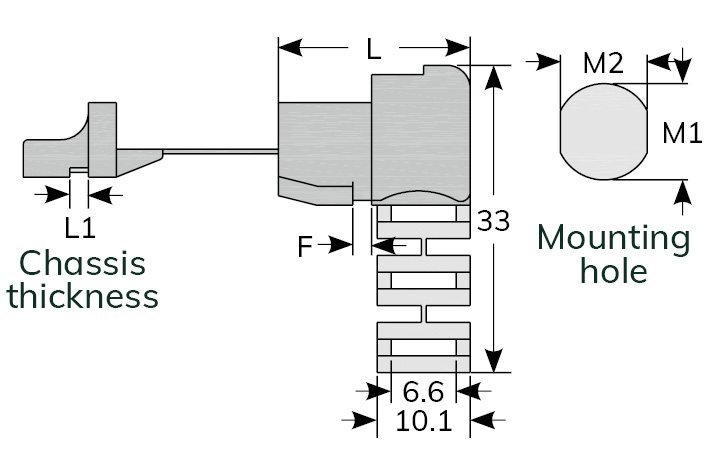

Part No.	Cross Section Shape	Wiress Accommodate		Mountiog Hole		Part Length	Chassis Thickness	Packing
		UL Wire	Size	M1	M2	L	L1
SB-F42LF	Flat	SPT-2	3.3x6.6 3.6x7.2	12.7~13.2 13.2~13.7	10.9	20.5	1.5~2.0	100 pcs / Bag
