FLEXIBLE STRAIN RELIEF BUSHING

BANDEX
CABLE ACCESSORIES

●	Material: UL94V-2 flame rated, UL approved Nylon 66.
●	Color: Black
※	Application Tool: KT-1

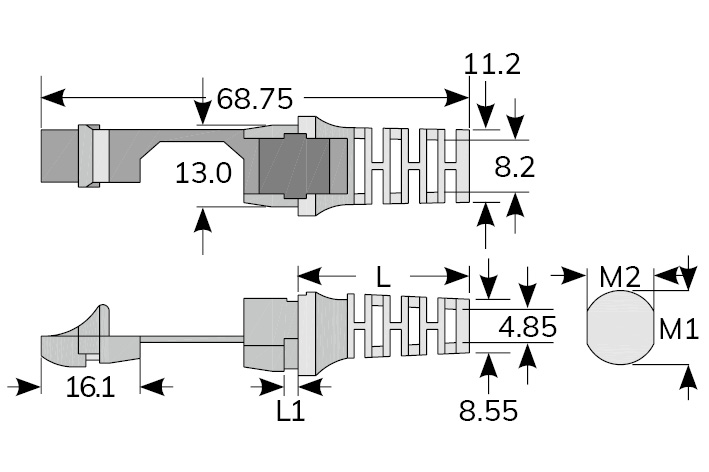

Part No. Cross Section Shape Wiress Accommodate Mountiog Hole Part Length Chassis Thickness Packing
UL Wire Size M1 M2 L L1
SB-F52F Flat SPT-2 4.6x8.0 12.7 ~ 13.2 13.0 27.55 0.8~2.3 100 pcs / Bag

HAYATA P.C. ENTERPRISE CO., LTD.
- Last Updated 4 Februaryl 2026 -


Part No.	Cross Section Shape	Wiress Accommodate		Mountiog Hole		Part Length	Chassis Thickness	Packing
Part No.	Cross Section Shape	UL Wire	Size	M1	M2	L	L1	Packing
SB-F52F	Flat	SPT-2	4.6x8.0	12.7 ~ 13.2	13.0	27.55	0.8~2.3	100 pcs / Bag
