| RIGHT ANGLE STRAIN RELIEF BUSHING |
  |
 |
| ● | Material: UL94V-2 flame rated, UL approved Nylon 66. |
| ● | Color: Black |
| ● | Protect power cable from chassis. |
| ● | L type design facilitate power cord runs out. |

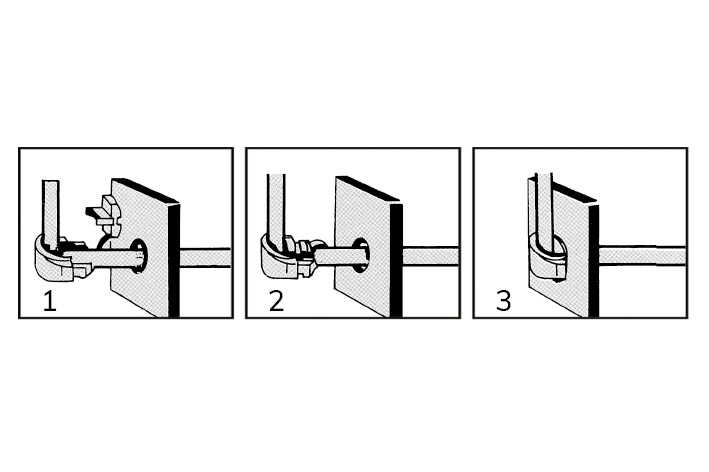

| ● | Assemble according photos as below. |
| ※ | Application Tool: KT-1 |
|
 |

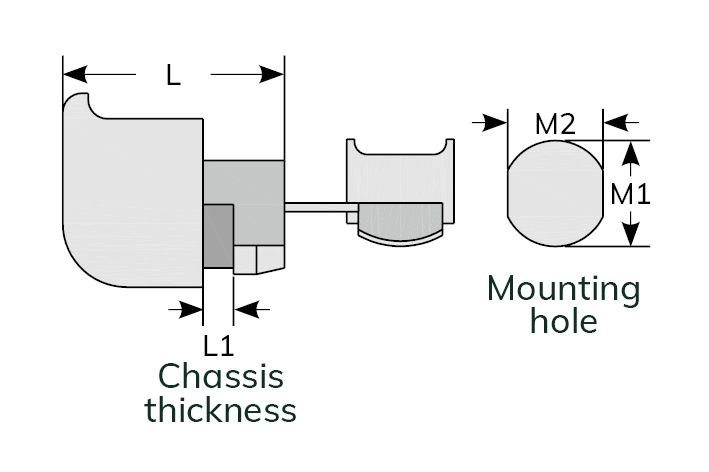

| Part No. | Cross Section Shape | Wiress Accommodate | Mountiog Hole | Part Length | Chassis Thickness | Packing |
| UL Wire | Size | M1 | M2 | L | L1 |
| SB-F42L | Flat | SPT-1 SPT-2 | 3.0x5.6 3.8x7.1 | 12.7 | 11.8 | 17.7 | 1.8~2.6 | 100 pcs / Bag |
