SNAP BUSHING

● Material: UL94V-2 flame rated, UL approved Nylon 66. ● Color: Black ● SNAP BUSHING smooth and insulate your raw-edged holes in metal chassis. ● Locking into hole firmly with fingertip pressure. ● Protect electrical cables, ropes, utility lines through metal holes. ● Available in application for chassis thickness under 3.2mm

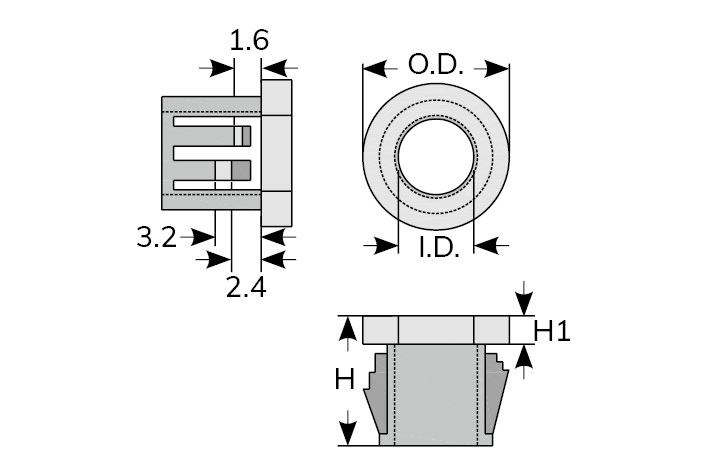

Part No.	Mounting Hole		Chassis Thickness	I.D.	O.D.	H	H1	Packing
	mm	inch
SB-8	7.9	5/16"	1.6	5.8	10.5	8.0	1.6	100 pcs / Bag
SB-8A	7.9	516"	2.2	5.1	10.3	8.0	1.6
SB-10	9.5	3/8"	3.2	6.4	12.0	10.3	1.6
SB-10M	9.5	3/8"	3.2	7.8	13.0	10.5	1.6
SB-13	12.7	1/2"	3.2	8.0	15.0	10.3	1.6
SB-14	14.3	9/16"	3.2	11.4	17.0	10.3	1.5
SB-16	15.9	5/8"	3.2	12.7	18.6	10.3	1.6
SB-19	19.1	3/4"	3.2	14.3	21.7	10.3	1.6
SB-19M	19.1	3/4"	3.2	15.8	21.7	10.3	1.6
SB-20	20.0		3.2	15.9	22.4	10.0	1.4
SB-22	22.2	7/8"	3.2	17.5	24.2	11.5	1.6
SB-22M	22.2	7/8"	3.2	18.9	24.2	11.5	1.6
SB-25	25.4	1"	3.5	19.5	28.5	11.7	1.8
SB-26	25.4		3.2	19.1	28.5	11.5	1.6
SB-30	30.1	1 3/16"	3.2	24.1	33.3	11.5	1.6
SB-32	32.0		3.5	23.8	34.6	11.4	1.5
SB-38	38.1	1 1/2"	3.2	29.0	42.1	11.4	1.5
SB-45	44.5	1 3/4"	3.2	35.4	47.8	11.6	1.5
SB-50	50.8	2"	3.2	41.6	54.6	11.8	1.6

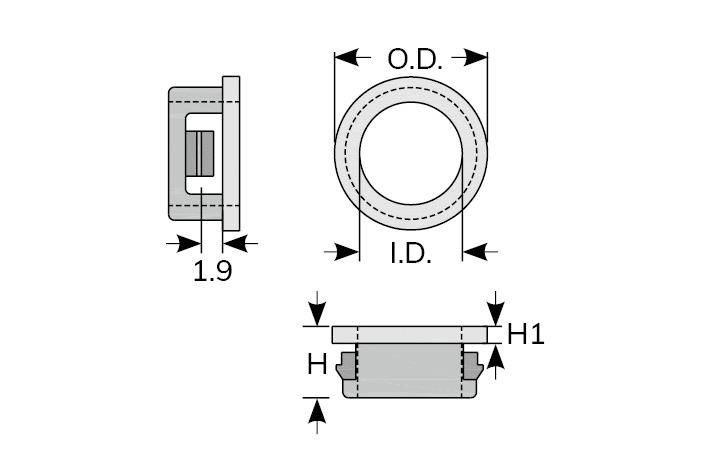

Part No.	Mounting Hole		Chassis Thickness	I.D.	O.D.	H	H1	Packing
	mm	inch
SB-7S	7.1	9/32"	1.8	5.8	8.8	6.1	1.3	100 pcs / Bag
SB-8S	7.9	5/16"	1.8	6.8	9.8	6.0	1.5
SB-12S	11.9	15/32"	1.8	9.2	13.7	6.3	1.5
SB-22S	22.2	7/8"	1.8	19.6	24.0	6.5	1.5

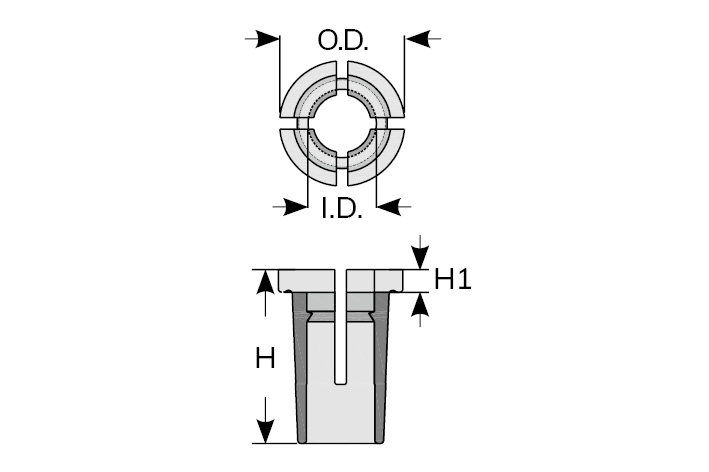

Part No.	Mounting Hole		Chassis Thickness	I.D.	O.D.	H	H1	Packing
	mm	inch
SBP-8	7.4			5.9	10.8	15.0	2.0	100 pcs / Bag
