| SNAP BUSHING |
  |
 |
| ● | Material: UL94V-2 flame rated, UL approved Nylon 66. |
| ● | Color: Black |
| ● | Universal design to hold various cable range with a fix size. |
|
 |

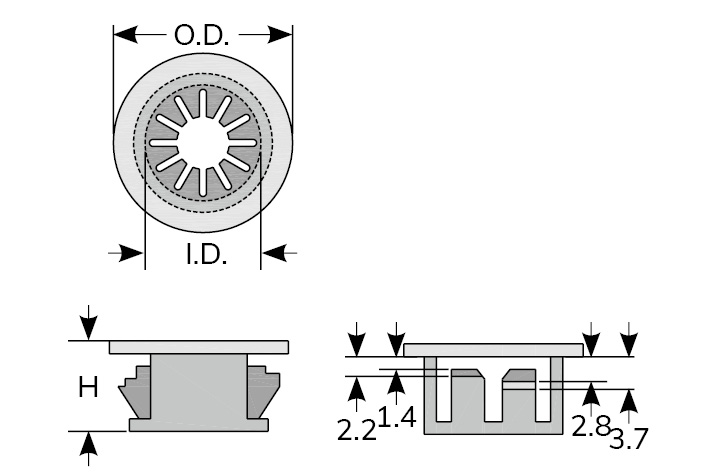

| Part No. | Mounting Hole | Chassis Thickness | I.D. | O.D. | H | Packing |
| mm | inch |
| RSB-16 | 15.9 | 5/8" | 3.2 | 12.7 | 20.5 | 10.3 | 100 pcs / Bag |
| RSB-19 | 19.1 | 3/4" | 3.2 | 14.8 | 24.0 | 10.0 |
| RSB-21 | 20.6 | 13/16" | 3.2 | 15.2 | 24.3 | 10.0 |
| RSB-22 | 22.2 | 7/8" | 3.2 | 17.0 | 25.4 | 11.5 |
| RSB-25S | 25.4 | 1" | 3.2 | 21.0 | 27.0 | 11.4 |
| RSB-25 | 25.4 | 1" | 3.2 | 20.4 | 28.5 | 11.5 |
| RSB-28 | 27.6 | 1 3/32" | 3.2 | 23.0 | 31.2 | 11.5 |
| RSB-35 | 34.9 | 1 3/8" | 3.2 | 29.5 | 38.5 | 11.7 |
| RSB-38 | 38.1 | 1 1/2" | 3.2 | 31.0 | 41.0 | 11.0 |
HAYATA P.C. ENTERPRISE CO., LTD.
