| SNAP BUSHING |
  |
 |
| ● | Material: UL94V-2 flame rated, UL approved Nylon 66. |
| ● | Color: Black |
| ● | Protect power cord and smooth chasis hole. |
| ● | Finger-tip pressure to install. No tool is needed. |
| ● | Can be applied after power cable installed. |
|
 |

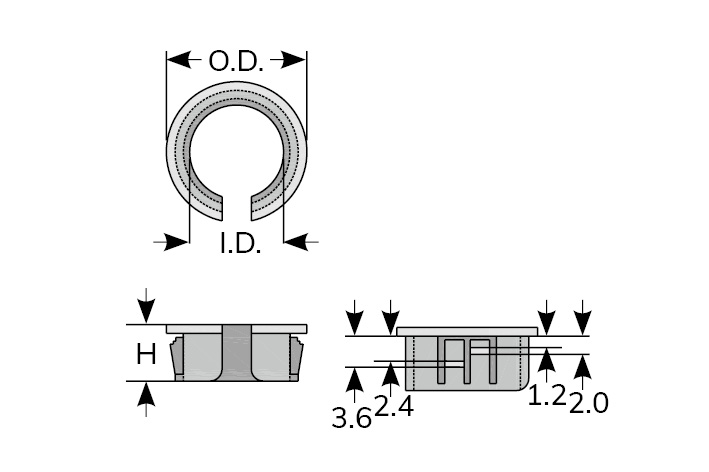

| Part No. | Mounting Hole | Chassis Thickness | I.D. | O.D. | H | Packing |
| mm | inch |
| OSB-10 | 9.5 | 3/8" | 3.5 | 6.0 | 11.8 | 9.8 | 100 pcs / Bag |
| OSB-13 | 12.7 | 1/2" | 3.2 | 7.5 | 15.1 | 10.3 |
| OSB-16 | 15.9 | 5/8" | 3.2 | 11.2 | 18.5 | 10.3 |
| OSB-19 | 19.1 | 3/4" | 3.2 | 12.5 | 21.0 | 10.3 |
| OSB-22 | 22.2 | 7/8" | 3.2 | 17.0 | 24.6 | 10.3 |
| OSB-26 | 25.4 | 1" | 3.2 | 20.0 | 28.0 | 10.6 |
 |

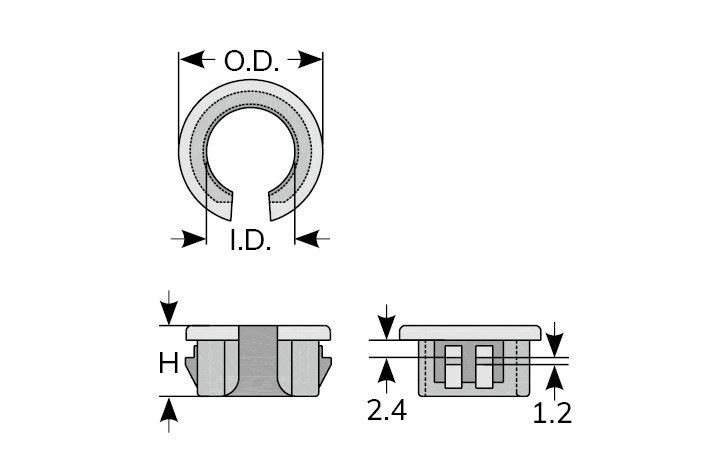

| Part No. | Mounting Hole | Chassis Thickness | I.D. | O.D. | H | Packing |
| mm | inch |
| OSB-9S | 9.5 | 3/8" | 1.6 | 6.5 | 11.3 | 6.1 | 100 pcs / Bag |
| OSB-12S | 12.7 | 1/2" | 1.6 | 9.6 | 15.8 | 7.3 |
HAYATA P.C. ENTERPRISE CO., LTD.
- Last Updated 4 Februaryl 2026 -
