| HOLE PLUG |
  |
 |
| ● | Material: UL94V-2 flame rated, UL approved Nylon 66. |
| ● | Color: Black |
| ● | HOLE PLUG close your unneeded holes with fingertip pressure at low cost and assure good appearance. |
|
 |

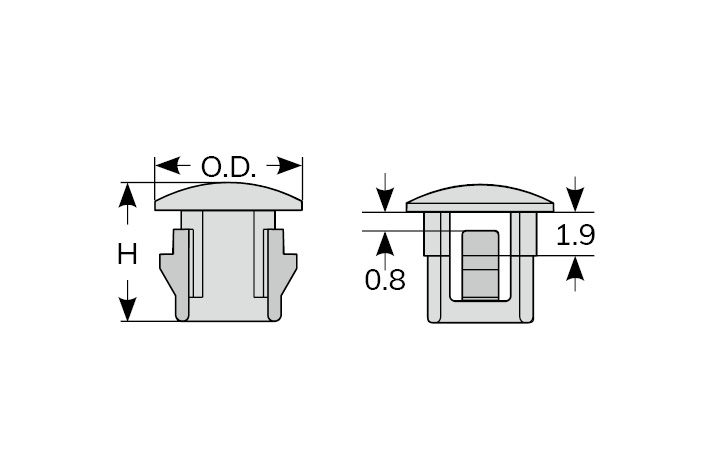

| Part No. | Mounting Hole | Chassis Thickness | O.D. | H | Packing |
| mm | inch |
| HP-10 | 9.5 | 3/8" | 3.2 | 13.0 | 10.5 | 100 pcs / Bag |
| HP-13S | 12.7 | 1/2" | 3.2 | 14.5 | 10.1 |
| HP-13 | 12.7 | 1/2" | 3.2 | 16.5 | 10.9 |
| HP-15 | 14.3 | 9/16" | 3.2 | 16.7 | 10.3 |
| HP-16 | 15.9 | 5/8" | 3.2 | 19.5 | 10.0 |
| HP-19 | 19.1 | 3/4" | 3.2 | 22.9 | 10.0 |
| HP-22 | 22.2 | 7/8" | 3.2 | 25.8 | 11.3 |
| HP-23 | 23.4 | | 3.2 | 27.0 | 11.4 |
| HP-25 | 25.4 | 1" | 3.2 | 29.0 | 11.6 |
HP-28 | 28.0 | 1 3/32" | 3.2 | 31.5 | 11.9 |
| HP-30 | 30.1 | 1 3/16" | 3.2 | 34.5 | 12.0 |
| HP-35 | 34.9 | 1 3/8" | 3.2 | 38.1 | 14.3 |
| HP-38 | 38.1 | 1 1/2" | 3.2 | 42.1 | 11.2 |
| HP-45 | 44.5 | 1 3/4" | 3.2 | 49.7 | 11.8 |
| HP-45L | 45.5 | | 3.2 | 49.7 | 11.8 |
| HP-50 | 50.0 | 1 31/32" | 3.2 | 54.3 | 12.1 |
 |
| Part No. | Mounting Hole | Chassis Thickness | O.D. | H | Packing |
| mm | inch |
| HP-5 | 5.0 | | 1.8 | 6.3 | 5.9 | 100 pcs / Bag |
| HP-6 | 6.0 | | 2.5 | 7.8 | 7.8 |
| HP-8 | 7.9 | 5/16" | 1.6 | 10.3 | 8.1 |
