| SCREW PLUG |
  |
 |
| ● | Material: UL94V-2 flame rated, UL approved Nylon 66. |
| ● | Color : Black (Grey available) |
| ● | SCREW PLUG close your unneeded holes at low cost and assure good appearance. |
|
PG THREAD
 |

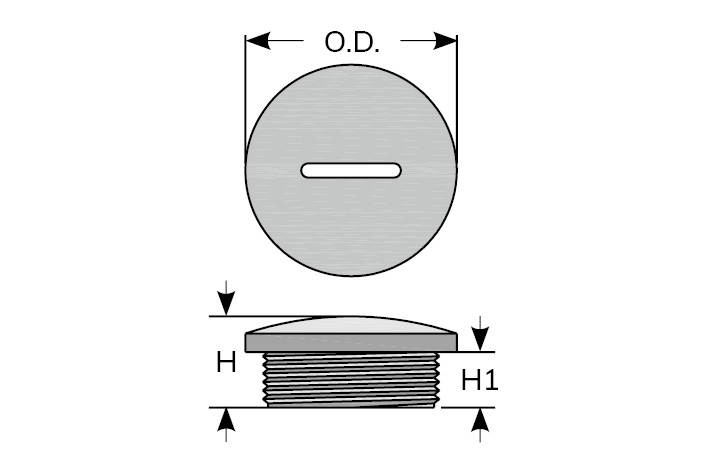

| Part No. | External thread | Thread O.D. | Mounting Hole | O.D. | H | H1 | Packing |
| PSP-7 | PG-7 | 12.5 | 12.5+0.2 | 14.8 | 10.0 | 6.0 | 100 pcs / Bag |
| PSP-9 | PG-9 | 15.2 | 15.2+0.2 | 18.7 | 10.4 | 6.0 |
| PSP-11 | PG-11 | 18.6 | 18.6+0.2 | 21.7 | 10.4 | 6.0 |
| PSP-13.5 | PG-13.5 | 20.4 | 20.4+0.2 | 23.7 | 10.3 | 6.0 |
| PSP-16 | PG-16 | 22.5 | 22.5+0.2 | 27.0 | 10.3 | 6.0 |
| PSP-21 | PG-21 | 28.3 | 28.3+0.3 | 32.8 | 12.8 | 7.8 |
| PSP-29 | PG-29 | 37.0 | 37.0+0.3 | 44.1 | 13.3 | 7.8 | 50 pcs / Bag |
| PSP-36 | PG-36 | 47.0 | 47.0+0.3 | 52.6 | 13.7 | 7.7 |
| PSP-42 | PG-42 | 54.0 | 54.0+0.3 | 59.5 | 16.3 | 9.6 | 10 pcs / Bag |
| PSP-48 | PG-48 | 59.3 | 59.3+0.3 | 64.2 | 18.0 | 11.8 |
HAYATA P.C. ENTERPRISE CO., LTD.
