D TYPE HOUSING COVER

● Material : PE ● Color : Natural ● To protect pin connector from dirty.

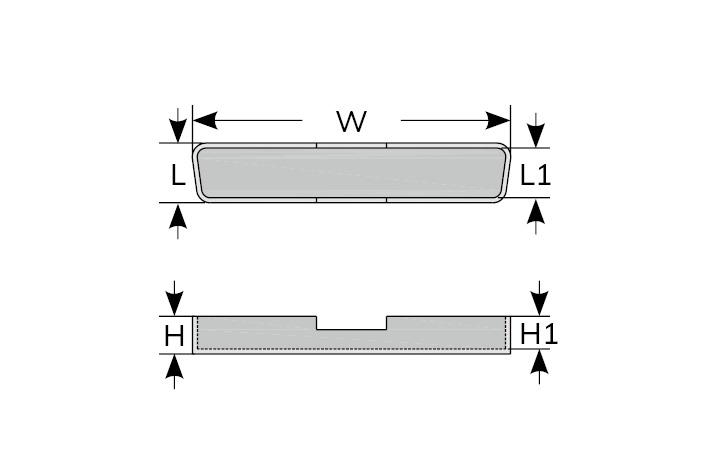

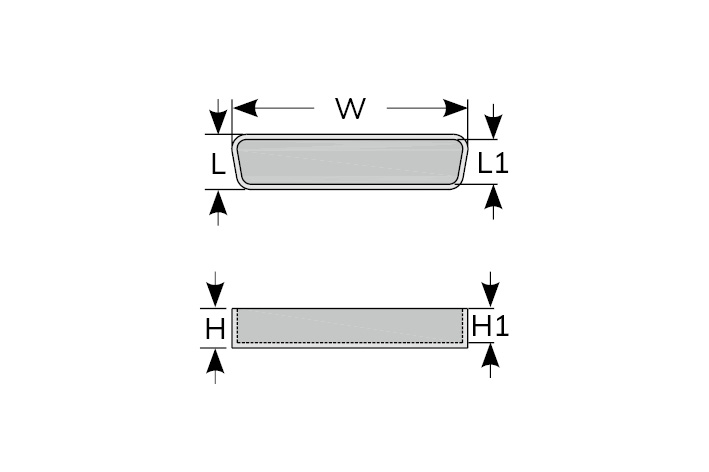

Part No.	L	L1	W	H	H1	Suitable Socket	Packing
HR-9M	11.0	9.2	20.0	7.2	6.1	9 PIN male	100 pcs / Bag
HR-9F	9.2	7.9	18.1	6.5	5.7	9 PIN female
HR-15M	10.9	9.1	28.2	7.0	6.0	15 PIN male
HR-15F	9.5	7.5	26.5	6.9	5.9	15 PIN female
HR-25M	10.9	9.1	42.0	7.3	6.3	25 PIN male
HR-25F	9.5	7.8	40.6	6.8	5.9	25 PIN female

Part No.	L	L1	W	H	H1	Suitable Socket	Packing
HR-37F	10.9	8.3	57.5	7.5	6.5	37 PIN female	100 pcs / Bag
