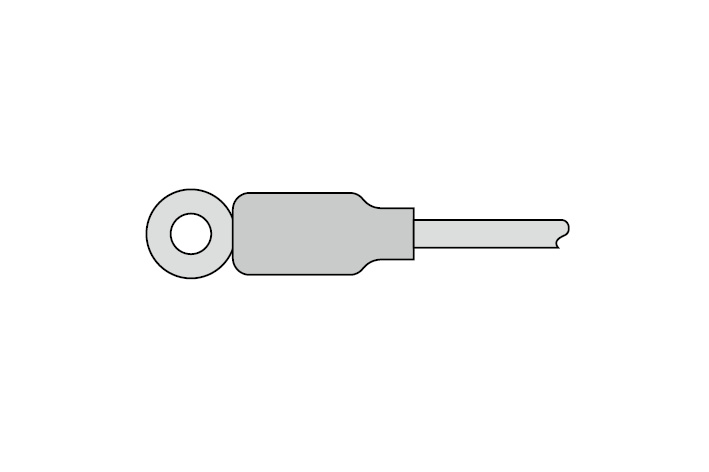

| VINYL WIRE END CAP |
 |
 |
| ● | Material: Flexible PVC. |
| ● | Suitable for all kinds of switchboard and complicated machinery to tell different colors. Soft and flexible material can be used for different shapes of end terminals, easy to tighten and take off. |
| ● | Feature: |
| 1. | Smooth and bright surface |
| 2. | Stable thickness |
| 3. | Consistant length |
| 4. | Even opening ends |
| 5. | Tidy the wiring works |
| ● | Standard color: Red, White, Blue, Yellow, Black, Green. (Brown, Grey available upon request) |
|
 |

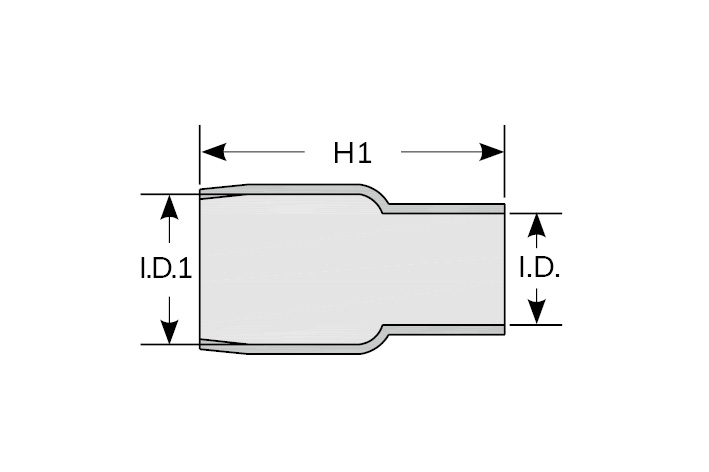

| Part No. | Dimension | Length | JIS | Color | Packing |
| I.D. | I.D.1 | H1 |
| V-1.25 | 3.1 | 3.3 | 15.0 | 1.25 | Red, Blue, White, Black, Yellow, Green, Brown, Grey | 100 pcs / Bag |
| V-2 | 3.7 | 4.5 | 14.0 | 2 |
| V-3.5 | 4.0 | 5.1 | 18.0 | 3.5 |
| V-5.5 | 4.9 | 5.7 | 20.0 | 5.5 |
| V-8 | 6.2 | 7.2 | 21.0 | 8 |
| V-14 | 8.0 | 8.8 | 28.0 | 14 |
| V-22 | 9.8 | 11.6 | 29.0 | 22 |
| V-38 | 13.0 | 14.5 | 33.0 | 38 |
| V-60 | 14.0 | 16.4 | 39.0 | 60 |
| V-80 | 15.8 | 18.2 | 46.0 | 80 |
| V-100 | 18.2 | 21.6 | 48.9 | 100 |
| V-125 | 20.3 | 23.6 | 52.5 | 125 | 50 pcs / Bag |
| V-150 | 22.3 | 25.3 | 62.7 | 150 |
| V-200 | 24.4 | 31.4 | 61.4 | 200 |
| V-250 | 27.0 | 32.8 | 71.5 | 250 | 25 pcs / Bag |
| V-325 | 29.5 | 35.3 | 73.0 | 325 |
| V-400 | 37.3 | 45.1 | 78.4 | 400 |
| V-500 | 40.2 | 48.0 | 82.3 | 500 |
| V-630 | 44.6 | 53.8 | 85.8 | 630 |
