HEAT SHRINKING SLEEVE

BANDEX
CABLE ACCESSORIES

●	Material: PVC.
●	Shrink temperature: min. 100℃
●	Radial Shrinking: 45~50%; Longitudinal Shrinking: 8~15%
●	Continuous operating temperature: -15 to 105℃.
●	Thickness：0.08mm

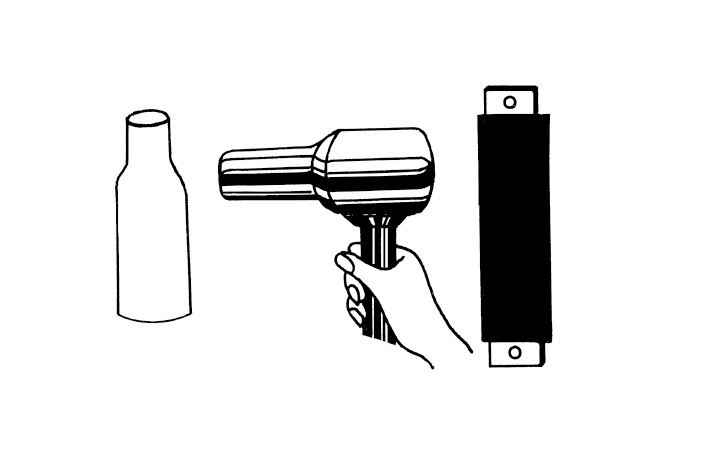

●	Used for color distinction and insulation of busbar in controll panel. To be shrinked by blower or hot water.

Part No. I.D. H1 Shrinkable Range After Shrinkage Color Packing
HS-6.5 4.1 6.5 6.5~3.6 2.3 Red、White、Blue、Black (Yellow、Green Upon Request) 100 M / Roll
HS-8.5 5.2 8.5 8.5~4.5 2.9
HS-12 7.6 12.0 12.0~6.5 4.2
HS-15 10.0 15.0 15.0~8.5 5.5
HS-20 13.0 20.0 20.0~11.0 7.2
HS-30 19.0 30.0 30.0~16.0 10.5
HS-40 25.0 40.0 40.0~22.0 13.8
HS-50 32.0 50.0 50.0~28.0 17.6
HS-60 38.0 60.0 60.0~33.0 20.9
HS-70 44.0 70.0 70.0~37.0 24.4
HS-80 50.0 80.0 80.0~42.0 27.5
HS-100 63.0 100.0 100.0~55.0 34.7
HS-120 76.0 120.0 120.0~65.0 41.8
HS-150 95.0 150.0 150.0~90.0 52.3
HS-170 108.0 170.0 170.0~94.0 59.4
HS-200 127.0 200.0 200.0~110.0 69.9

HAYATA P.C. ENTERPRISE CO., LTD.
- Last Updated 4 Februaryl 2026 -


Part No.	I.D.	H1	Shrinkable Range	After Shrinkage	Color	Packing
HS-6.5	4.1	6.5	6.5~3.6	2.3	Red、White、Blue、Black (Yellow、Green Upon Request)	100 M / Roll
HS-8.5	5.2	8.5	8.5~4.5	2.9
HS-12	7.6	12.0	12.0~6.5	4.2
HS-15	10.0	15.0	15.0~8.5	5.5
HS-20	13.0	20.0	20.0~11.0	7.2
HS-30	19.0	30.0	30.0~16.0	10.5
HS-40	25.0	40.0	40.0~22.0	13.8
HS-50	32.0	50.0	50.0~28.0	17.6
HS-60	38.0	60.0	60.0~33.0	20.9
HS-70	44.0	70.0	70.0~37.0	24.4
HS-80	50.0	80.0	80.0~42.0	27.5
HS-100	63.0	100.0	100.0~55.0	34.7
HS-120	76.0	120.0	120.0~65.0	41.8
HS-150	95.0	150.0	150.0~90.0	52.3
HS-170	108.0	170.0	170.0~94.0	59.4
HS-200	127.0	200.0	200.0~110.0	69.9
