HEAT-SHRINKABLE TUBINGS

● Material: polyolefin. ● Color: Red. ● Shrink ratio: 2.5:1; Radial Shrinking: min. 60%; Longitudinal Shrinking: max. 15% ● Continuous operating temperature: -40 to 120℃

SBI 300 (24KV)
Part No.	As supplied		After shrinkage		Suitable Busbar Range		Packing

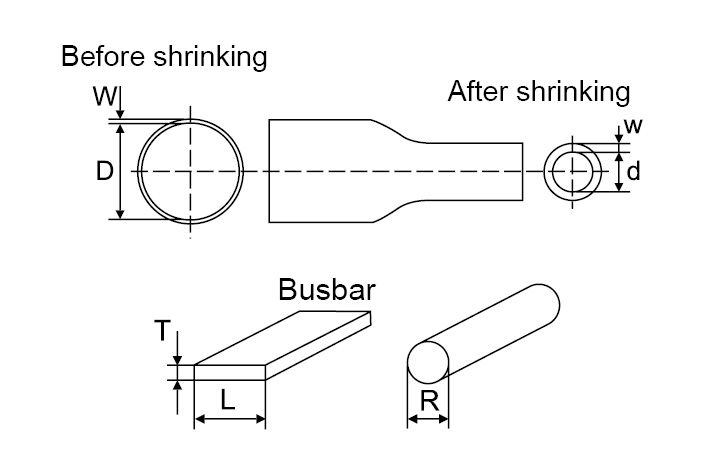

	Internal Diameter min.	Wall Thickness nominal	Internal Diameter Max.	Wall Thickness nominal	Square shape L+ T Minimum (min.) Maximum (max.)	Round shape R Minimum (min.) Maximum (max.)
SBI300-15	15.0	1.1	6.0	2.0	12 ~ 18	6.5 ~ 12	25 M / Roll
SBI300-30	30.0	1.1	12.0	2.3	22 ~ 38	13.5 ~ 25
SBI300-50	50.0	1.1	20.0	2.5	36 ~ 65	22.0 ~ 43
SBI300-75	75.0	1.1	30.0	2.5	55 ~ 95	33.0 ~ 63
SBI300-100	100.0	1.1	40.0	2.5	70 ~ 130	44.0 ~ 86
SBI300-120	120.0	1.3	50.0	3.0	90 ~ 165	55.0 ~ 105

SBI 350 (36KV)
Part No.	As supplied		After shrinkage		Suitable Busbar Range		Packing
	Internal Diameter min.	Wall Thickness nominal	Internal Diameter Max.	Wall Thickness nominal	Square shape L+ T Minimum (min.) Maximum (max.)	Round shape R Minimum (min.) Maximum (max.)
SBI350-25	25.0	1.6	10.0	4.0	17 ~ 28	11.0 ~ 20	25 M / Roll
SBI350-40	40.0	1.6	16.0	4.0	28 ~ 45	18.0 ~ 32
SBI350-65	65.0	1.6	25.0	4.0	45 ~ 67	28.0 ~ 47
SBI350-100	100.0	1.6	40.0	4.0	67 ~ 102	44.0 ~ 72
